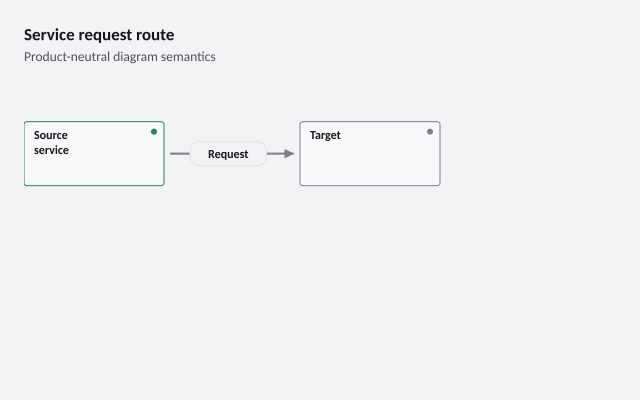

Service request route

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = SimpleTopologyRecipe.Create("feasibility", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(640, 400)), theme, mode,
    new VisualFrame("Service request route", "Product-neutral diagram semantics", showLegend: false, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Topology).ToHtmlPage());

/// <summary>Creates a small service request route with two nodes and a directed edge.</summary>
public static class SimpleTopologyRecipe {
    /// <summary>Creates the bounded native topology model.</summary>
    /// <param name="variant">Use wide or feasibility for the simple topology.</param>
    /// <param name="mode">The rendering mode; diagram colors are resolved when the model is prepared.</param>
    public static TopologyChart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "feasibility"))
            throw new ArgumentOutOfRangeException(nameof(variant), variant, "Use wide or feasibility.");

        var chart = TopologyChart.Create();
        chart.Id = "service-request";
        chart.Viewport = new TopologyViewport { Width = 640, Height = 400 };
        chart.Nodes.Add(new TopologyNode {
            Id = "source", Label = "Source\nservice", X = 24, Y = 70, Width = 140, Height = 64,
            Status = TopologyHealthStatus.Healthy
        });
        chart.Nodes.Add(new TopologyNode {
            Id = "target", Label = "Target", X = 300, Y = 70, Width = 140, Height = 64
        });
        chart.Edges.Add(new TopologyEdge {
            Id = "route", SourceNodeId = "source", TargetNodeId = "target", Direction = VisualLinkDirection.Forward,
            Routing = TopologyEdgeRouting.Straight, LineStyle = TopologyEdgeLineStyle.Solid, Label = "Request"
        });
        return chart;
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

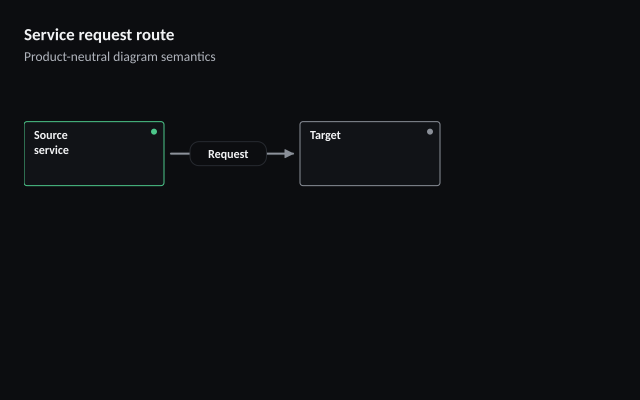

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = SimpleTopologyRecipe.Create("feasibility", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(640, 400)), theme, mode,
    new VisualFrame("Service request route", "Product-neutral diagram semantics", showLegend: false, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Topology).ToHtmlPage());

/// <summary>Creates a small service request route with two nodes and a directed edge.</summary>
public static class SimpleTopologyRecipe {
    /// <summary>Creates the bounded native topology model.</summary>
    /// <param name="variant">Use wide or feasibility for the simple topology.</param>
    /// <param name="mode">The rendering mode; diagram colors are resolved when the model is prepared.</param>
    public static TopologyChart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "feasibility"))
            throw new ArgumentOutOfRangeException(nameof(variant), variant, "Use wide or feasibility.");

        var chart = TopologyChart.Create();
        chart.Id = "service-request";
        chart.Viewport = new TopologyViewport { Width = 640, Height = 400 };
        chart.Nodes.Add(new TopologyNode {
            Id = "source", Label = "Source\nservice", X = 24, Y = 70, Width = 140, Height = 64,
            Status = TopologyHealthStatus.Healthy
        });
        chart.Nodes.Add(new TopologyNode {
            Id = "target", Label = "Target", X = 300, Y = 70, Width = 140, Height = 64
        });
        chart.Edges.Add(new TopologyEdge {
            Id = "route", SourceNodeId = "source", TargetNodeId = "target", Direction = VisualLinkDirection.Forward,
            Routing = TopologyEdgeRouting.Straight, LineStyle = TopologyEdgeLineStyle.Solid, Label = "Request"
        });
        return chart;
    }
}
