Changes in available capacity

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

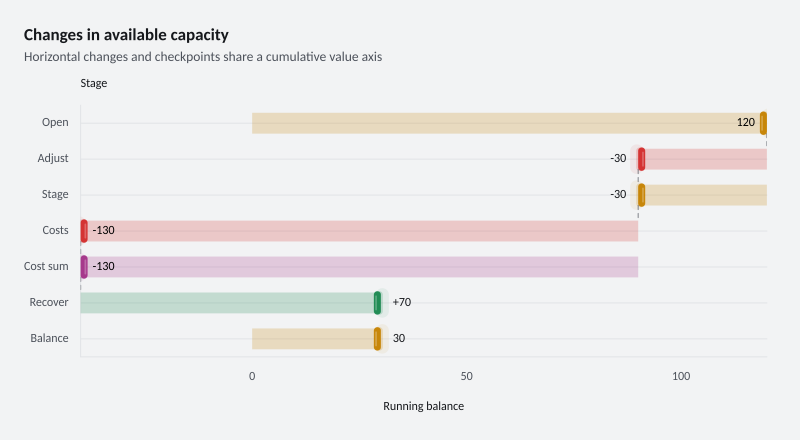

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = WaterfallRecipe.Create("horizontal", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Changes in available capacity", "Horizontal changes and checkpoints share a cumulative value axis", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds running-balance waterfalls with signed changes and explicit checkpoints.</summary>
public static class WaterfallRecipe {
    /// <summary>Creates the selected waterfall example and its orientation.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options" or "horizontal" or "compact-horizontal"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var chart = Chart.Create();
        if (variant is "options" or "compact-options" or "horizontal" or "compact-horizontal") {
            var horizontal = variant is "horizontal" or "compact-horizontal";
            var movement = ChartSeries.CreateWaterfall(new ChartSeriesId("movement"), "Movement", new[] {
                ChartWaterfallItem.OpeningBalance(1, 120), ChartWaterfallItem.Delta(2, -30), ChartWaterfallItem.Subtotal(3),
                ChartWaterfallItem.Delta(4, -130), ChartWaterfallItem.Subtotal(5), ChartWaterfallItem.Delta(6, 70),
                ChartWaterfallItem.Total(7)
            }).WithObservationId(3, new ChartObservationId("cost-change"))
                .WithObservationId(4, new ChartObservationId("cost-checkpoint"))
                .WithPointColor(4, "#A5358A");
            chart.WithXLabels("Open", "Adjust", "Stage", "Costs", "Cost sum", "Recover", "Balance").AddSeries(movement)
                .ConfigureWaterfall(options => options.Orientation = horizontal ? ChartOrientation.Horizontal : ChartOrientation.Vertical);
            if (horizontal) chart.WithXAxis("Running balance").WithYAxis("Stage").WithBarStyle(ChartBarStyle.SegmentedCapsule);
            else chart.WithYAxis("Running balance");
            chart.Options.XAxis.WithReversal(!horizontal || variant == "compact-horizontal");
            chart.Options.YAxis.WithReversal();
            chart.WithDataLabels();
        }
        else {
            var changes = new ChartSeries(new ChartSeriesId("changes"), "Changes", ChartSeriesKind.Waterfall, new[] {
                new ChartPoint(1, 60), new ChartPoint(2, -15), new ChartPoint(3, 25), new ChartPoint(4, -10), new ChartPoint(5, 12)
            });
            chart.WithXLabels("North", "South", "East", "West", "Central", "Total").AddSeries(changes);
        }
        return chart.WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

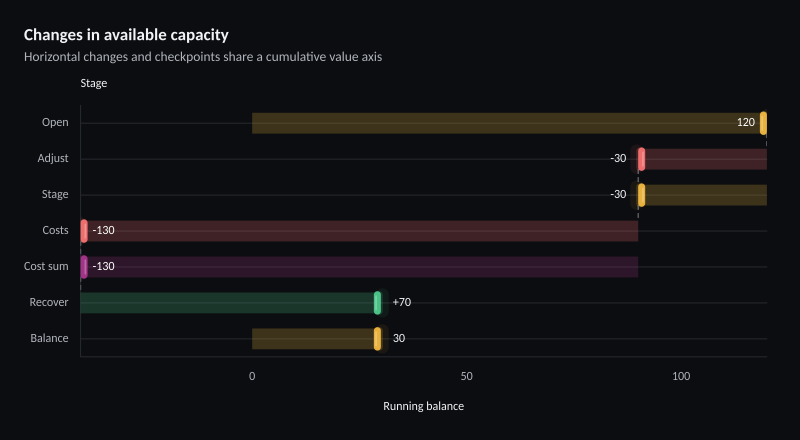

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = WaterfallRecipe.Create("horizontal", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Changes in available capacity", "Horizontal changes and checkpoints share a cumulative value axis", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds running-balance waterfalls with signed changes and explicit checkpoints.</summary>
public static class WaterfallRecipe {
    /// <summary>Creates the selected waterfall example and its orientation.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options" or "horizontal" or "compact-horizontal"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var chart = Chart.Create();
        if (variant is "options" or "compact-options" or "horizontal" or "compact-horizontal") {
            var horizontal = variant is "horizontal" or "compact-horizontal";
            var movement = ChartSeries.CreateWaterfall(new ChartSeriesId("movement"), "Movement", new[] {
                ChartWaterfallItem.OpeningBalance(1, 120), ChartWaterfallItem.Delta(2, -30), ChartWaterfallItem.Subtotal(3),
                ChartWaterfallItem.Delta(4, -130), ChartWaterfallItem.Subtotal(5), ChartWaterfallItem.Delta(6, 70),
                ChartWaterfallItem.Total(7)
            }).WithObservationId(3, new ChartObservationId("cost-change"))
                .WithObservationId(4, new ChartObservationId("cost-checkpoint"))
                .WithPointColor(4, "#A5358A");
            chart.WithXLabels("Open", "Adjust", "Stage", "Costs", "Cost sum", "Recover", "Balance").AddSeries(movement)
                .ConfigureWaterfall(options => options.Orientation = horizontal ? ChartOrientation.Horizontal : ChartOrientation.Vertical);
            if (horizontal) chart.WithXAxis("Running balance").WithYAxis("Stage").WithBarStyle(ChartBarStyle.SegmentedCapsule);
            else chart.WithYAxis("Running balance");
            chart.Options.XAxis.WithReversal(!horizontal || variant == "compact-horizontal");
            chart.Options.YAxis.WithReversal();
            chart.WithDataLabels();
        }
        else {
            var changes = new ChartSeries(new ChartSeriesId("changes"), "Changes", ChartSeriesKind.Waterfall, new[] {
                new ChartPoint(1, 60), new ChartPoint(2, -15), new ChartPoint(3, 25), new ChartPoint(4, -10), new ChartPoint(5, 12)
            });
            chart.WithXLabels("North", "South", "East", "West", "Central", "Total").AddSeries(changes);
        }
        return chart.WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}
