How work is allocated across teams

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

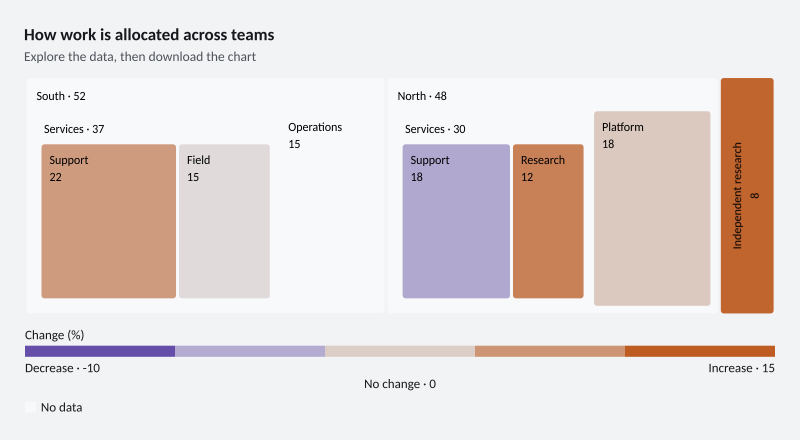

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = TreemapRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("How work is allocated across teams", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Creates a treemap showing work allocation and independent numeric color values.</summary>
public static class TreemapRecipe {
    /// <summary>Creates the source model for a gallery variant without choosing an export backend.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));

        var items = variant == "sparse" ? new[] {
            new ChartHierarchyItem("independent", "Independent team", value: 100, colorValue: 7),
            new ChartHierarchyItem("reserve", "Reserve", value: 0)
        } : new[] {
            new ChartHierarchyItem("north", "North"),
            new ChartHierarchyItem("north-services", "Services", parentId: "north"),
            new ChartHierarchyItem("north-support", "Support", parentId: "north-services", value: 18, colorValue: -4),
            new ChartHierarchyItem("north-research", "Research", parentId: "north-services", value: 12, colorValue: 11),
            new ChartHierarchyItem("north-platform", "Platform", parentId: "north", value: 18, colorValue: 3),
            new ChartHierarchyItem("south", "South"),
            new ChartHierarchyItem("south-services", "Services", parentId: "south"),
            new ChartHierarchyItem("south-support", "Support", parentId: "south-services", value: 22, colorValue: 8),
            new ChartHierarchyItem("south-field", "Field", parentId: "south-services", value: 15, colorValue: 1),
            new ChartHierarchyItem("south-operations", "Operations", parentId: "south", value: 15),
            new ChartHierarchyItem("research", "Independent research", value: 8, colorValue: 14),
            new ChartHierarchyItem("reserve", "Reserve", value: 0)
        };
        var colors = VisualTheme.Graphite().Resolve(mode);
        var low = mode == VisualThemeMode.Dark ? ChartColor.FromRgb(153, 138, 224) : ChartColor.FromRgb(101, 78, 169);
        var high = mode == VisualThemeMode.Dark ? ChartColor.FromRgb(238, 157, 98) : ChartColor.FromRgb(191, 92, 34);
        var scale = variant == "options" ? ChartColorScale.Discrete(new[] {
            new ChartColorBand(0, low, "Decline"), new ChartColorBand(10, colors.Border, "Steady"), new ChartColorBand(null, high, "Growth")
        }) : ChartColorScale.Diverging(low, colors.Border, high, 0).WithValueRange(-10, 15).WithLabels("Decrease", "No change", "Increase");
        var allocation = ChartSeries.CreateTreemap(new ChartSeriesId("allocation-source"), "Allocated work", items);
        var chart = Chart.Create().WithDataLabels(true).AddSeries(allocation).ConfigureTreemap(options => {
            options.GroupPadding = variant == "options" ? 8 : 6;
            options.Gap = 3;
            options.ShowGroupLabels = true;
            options.ColorDimension.Name = "Change (%)";
            options.ColorScale = scale.WithNoDataColor(colors.Surface);
        });
        if (variant == "options") allocation.WithNodeState("south-support", ChartSeriesState.Warning);
        return chart.WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }

}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

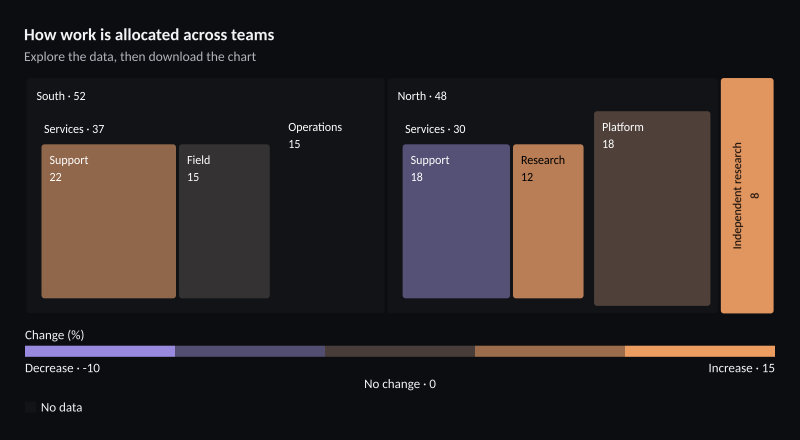

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = TreemapRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("How work is allocated across teams", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Creates a treemap showing work allocation and independent numeric color values.</summary>
public static class TreemapRecipe {
    /// <summary>Creates the source model for a gallery variant without choosing an export backend.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));

        var items = variant == "sparse" ? new[] {
            new ChartHierarchyItem("independent", "Independent team", value: 100, colorValue: 7),
            new ChartHierarchyItem("reserve", "Reserve", value: 0)
        } : new[] {
            new ChartHierarchyItem("north", "North"),
            new ChartHierarchyItem("north-services", "Services", parentId: "north"),
            new ChartHierarchyItem("north-support", "Support", parentId: "north-services", value: 18, colorValue: -4),
            new ChartHierarchyItem("north-research", "Research", parentId: "north-services", value: 12, colorValue: 11),
            new ChartHierarchyItem("north-platform", "Platform", parentId: "north", value: 18, colorValue: 3),
            new ChartHierarchyItem("south", "South"),
            new ChartHierarchyItem("south-services", "Services", parentId: "south"),
            new ChartHierarchyItem("south-support", "Support", parentId: "south-services", value: 22, colorValue: 8),
            new ChartHierarchyItem("south-field", "Field", parentId: "south-services", value: 15, colorValue: 1),
            new ChartHierarchyItem("south-operations", "Operations", parentId: "south", value: 15),
            new ChartHierarchyItem("research", "Independent research", value: 8, colorValue: 14),
            new ChartHierarchyItem("reserve", "Reserve", value: 0)
        };
        var colors = VisualTheme.Graphite().Resolve(mode);
        var low = mode == VisualThemeMode.Dark ? ChartColor.FromRgb(153, 138, 224) : ChartColor.FromRgb(101, 78, 169);
        var high = mode == VisualThemeMode.Dark ? ChartColor.FromRgb(238, 157, 98) : ChartColor.FromRgb(191, 92, 34);
        var scale = variant == "options" ? ChartColorScale.Discrete(new[] {
            new ChartColorBand(0, low, "Decline"), new ChartColorBand(10, colors.Border, "Steady"), new ChartColorBand(null, high, "Growth")
        }) : ChartColorScale.Diverging(low, colors.Border, high, 0).WithValueRange(-10, 15).WithLabels("Decrease", "No change", "Increase");
        var allocation = ChartSeries.CreateTreemap(new ChartSeriesId("allocation-source"), "Allocated work", items);
        var chart = Chart.Create().WithDataLabels(true).AddSeries(allocation).ConfigureTreemap(options => {
            options.GroupPadding = variant == "options" ? 8 : 6;
            options.Gap = 3;
            options.ShowGroupLabels = true;
            options.ColorDimension.Name = "Change (%)";
            options.ColorScale = scale.WithNoDataColor(colors.Surface);
        });
        if (variant == "options") allocation.WithNodeState("south-support", ChartSeriesState.Warning);
        return chart.WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }

}
