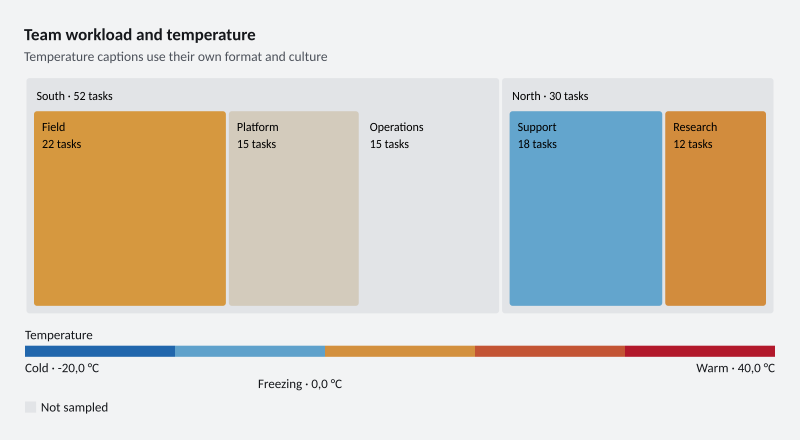

Team workload and temperature

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = TreemapColorDimensionRecipe.Create("color-dimension", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Team workload and temperature", "Temperature captions use their own format and culture", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Creates a treemap with task counts and independently formatted temperature colors.</summary>
public static class TreemapColorDimensionRecipe {
    /// <summary>Creates the source model for a gallery variant without choosing an export backend.</summary>
    public static Chart Create(string variant = "color-dimension", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("color-dimension" or "compact-color-dimension"))
            throw new ArgumentOutOfRangeException(nameof(variant));

        var colors = VisualTheme.Graphite().Resolve(mode);
        var allocation = ChartSeries.CreateTreemap(new ChartSeriesId("allocation-source"), "Allocated work", new[] {
            new ChartHierarchyItem("north", "North"),
            new ChartHierarchyItem("support", "Support", parentId: "north", value: 18, colorValue: -4),
            new ChartHierarchyItem("research", "Research", parentId: "north", value: 12, colorValue: 11),
            new ChartHierarchyItem("south", "South"),
            new ChartHierarchyItem("field", "Field", parentId: "south", value: 22, colorValue: 8),
            new ChartHierarchyItem("platform", "Platform", parentId: "south", value: 15, colorValue: 1),
            new ChartHierarchyItem("operations", "Operations", parentId: "south", value: 15)
        });
        var scale = ChartColorScale.Diverging(new[] {
            new ChartColorStop(-20, ChartColor.FromHex("#2166AC")), new ChartColorStop(-3, ChartColor.FromHex("#67A9CF"))
        }, new ChartColorStop(0, ChartColor.FromHex("#D1D5DB")), new[] {
            new ChartColorStop(5, ChartColor.FromHex("#D9A441")), new ChartColorStop(40, ChartColor.FromHex("#B2182B"))
        }).WithLabels("Cold", "Freezing", "Warm").WithNoDataColor(colors.Border);
        return Chart.Create().ConfigureLabels(labels => labels.NoData = "Not sampled")
            .WithValueFormat(ChartValueFormat.Number("0 'tasks'", System.Globalization.CultureInfo.InvariantCulture)).WithDataLabels()
            .AddSeries(allocation).ConfigureTreemap(options => {
                options.Gap = 3;
                options.GroupPadding = 6;
                options.ColorScale = scale;
                options.ColorDimension.Name = "Temperature";
                options.ColorDimension.ValueFormat = ChartValueFormat.Number("0.0 '°C'", System.Globalization.CultureInfo.GetCultureInfo("pl-PL"));
                options.ColorDimension.LegendStyle = ChartColorLegendStyle.Auto;
            });
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

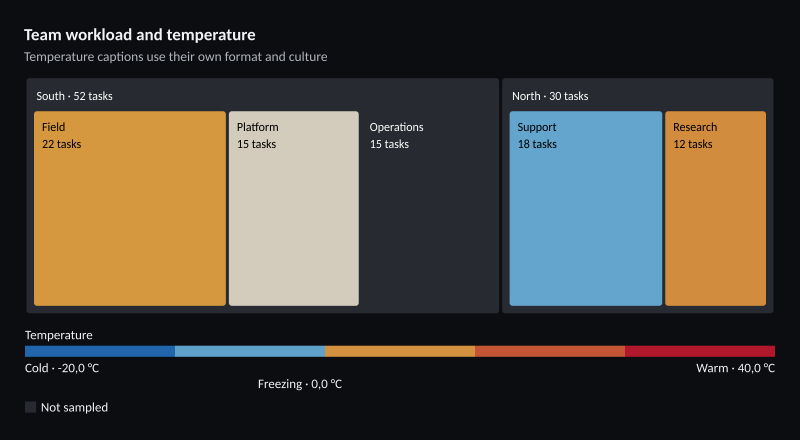

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = TreemapColorDimensionRecipe.Create("color-dimension", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Team workload and temperature", "Temperature captions use their own format and culture", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Creates a treemap with task counts and independently formatted temperature colors.</summary>
public static class TreemapColorDimensionRecipe {
    /// <summary>Creates the source model for a gallery variant without choosing an export backend.</summary>
    public static Chart Create(string variant = "color-dimension", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("color-dimension" or "compact-color-dimension"))
            throw new ArgumentOutOfRangeException(nameof(variant));

        var colors = VisualTheme.Graphite().Resolve(mode);
        var allocation = ChartSeries.CreateTreemap(new ChartSeriesId("allocation-source"), "Allocated work", new[] {
            new ChartHierarchyItem("north", "North"),
            new ChartHierarchyItem("support", "Support", parentId: "north", value: 18, colorValue: -4),
            new ChartHierarchyItem("research", "Research", parentId: "north", value: 12, colorValue: 11),
            new ChartHierarchyItem("south", "South"),
            new ChartHierarchyItem("field", "Field", parentId: "south", value: 22, colorValue: 8),
            new ChartHierarchyItem("platform", "Platform", parentId: "south", value: 15, colorValue: 1),
            new ChartHierarchyItem("operations", "Operations", parentId: "south", value: 15)
        });
        var scale = ChartColorScale.Diverging(new[] {
            new ChartColorStop(-20, ChartColor.FromHex("#2166AC")), new ChartColorStop(-3, ChartColor.FromHex("#67A9CF"))
        }, new ChartColorStop(0, ChartColor.FromHex("#D1D5DB")), new[] {
            new ChartColorStop(5, ChartColor.FromHex("#D9A441")), new ChartColorStop(40, ChartColor.FromHex("#B2182B"))
        }).WithLabels("Cold", "Freezing", "Warm").WithNoDataColor(colors.Border);
        return Chart.Create().ConfigureLabels(labels => labels.NoData = "Not sampled")
            .WithValueFormat(ChartValueFormat.Number("0 'tasks'", System.Globalization.CultureInfo.InvariantCulture)).WithDataLabels()
            .AddSeries(allocation).ConfigureTreemap(options => {
                options.Gap = 3;
                options.GroupPadding = 6;
                options.ColorScale = scale;
                options.ColorDimension.Name = "Temperature";
                options.ColorDimension.ValueFormat = ChartValueFormat.Number("0.0 '°C'", System.Globalization.CultureInfo.GetCultureInfo("pl-PL"));
                options.ColorDimension.LegendStyle = ChartColorLegendStyle.Auto;
            });
    }
}
