Service coverage by state

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

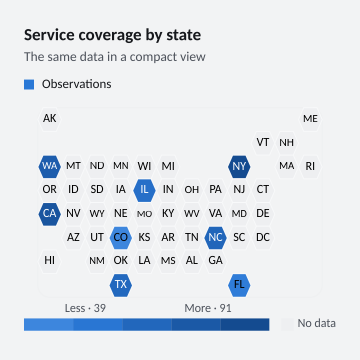

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = TileMapRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Service coverage by state", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Creates a tile map showing service coverage by state.</summary>
public static class TileMapRecipe {
    /// <summary>Creates the source model for a gallery variant without choosing an export backend.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));

        return Chart.Create().AddTileMap("Observations", ChartTileMapCatalog.Get("us-states"), new[] {
                new ChartRegionMapItem("CA", 82), new ChartRegionMapItem("TX", 64),
                new ChartRegionMapItem("NY", 91), new ChartRegionMapItem("FL", 47),
                new ChartRegionMapItem("WA", 74), new ChartRegionMapItem("IL", 58),
                new ChartRegionMapItem("CO", 39), new ChartRegionMapItem("NC", 66)
            }, id: new ChartSeriesId("state-observations"))
            .WithMapLabels()
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

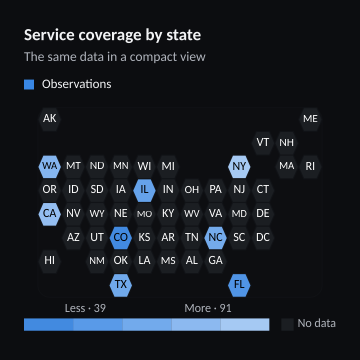

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = TileMapRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Service coverage by state", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Creates a tile map showing service coverage by state.</summary>
public static class TileMapRecipe {
    /// <summary>Creates the source model for a gallery variant without choosing an export backend.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));

        return Chart.Create().AddTileMap("Observations", ChartTileMapCatalog.Get("us-states"), new[] {
                new ChartRegionMapItem("CA", 82), new ChartRegionMapItem("TX", 64),
                new ChartRegionMapItem("NY", 91), new ChartRegionMapItem("FL", 47),
                new ChartRegionMapItem("WA", 74), new ChartRegionMapItem("IL", 58),
                new ChartRegionMapItem("CO", 39), new ChartRegionMapItem("NC", 66)
            }, id: new ChartSeriesId("state-observations"))
            .WithMapLabels()
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }
}
