Requests waiting in the queue

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

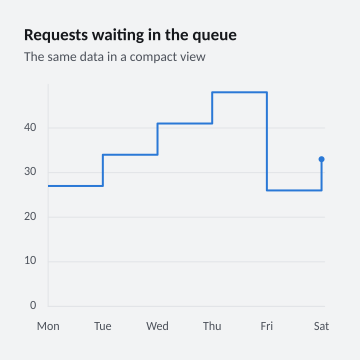

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = StepLineRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Requests waiting in the queue", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds a stepped line showing requests waiting in a queue.</summary>
public static class StepLineRecipe {
    /// <summary>Creates the selected stepped-line example.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var points = Enumerable.Range(1, 6).Where(index => variant != "sparse" || index is 1 or 3 or 6)
            .Select(index => new ChartPoint(index, 20 + index * 7 % 29, variant == "sparse" && index == 6));
        var queued = new ChartSeries(new ChartSeriesId("queued"), "Queued", ChartSeriesKind.StepLine, points);
        return Chart.Create().WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri", "Sat").AddSeries(queued)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

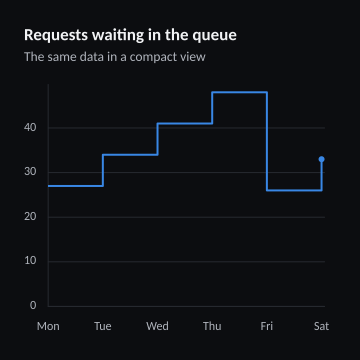

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = StepLineRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Requests waiting in the queue", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds a stepped line showing requests waiting in a queue.</summary>
public static class StepLineRecipe {
    /// <summary>Creates the selected stepped-line example.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var points = Enumerable.Range(1, 6).Where(index => variant != "sparse" || index is 1 or 3 or 6)
            .Select(index => new ChartPoint(index, 20 + index * 7 % 29, variant == "sparse" && index == 6));
        var queued = new ChartSeries(new ChartSeriesId("queued"), "Queued", ChartSeriesKind.StepLine, points);
        return Chart.Create().WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri", "Sat").AddSeries(queued)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}
