Reserved processing capacity

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

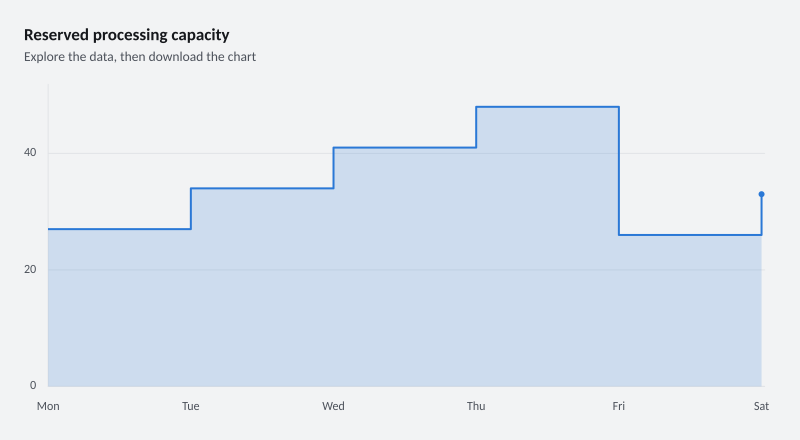

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = StepAreaRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Reserved processing capacity", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds a stepped area showing reserved processing capacity.</summary>
public static class StepAreaRecipe {
    /// <summary>Creates the selected stepped-area example.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var points = Enumerable.Range(1, 6).Where(index => variant != "sparse" || index is 1 or 3 or 6)
            .Select(index => new ChartPoint(index, 20 + index * 7 % 29, variant == "sparse" && index == 6));
        var reserved = new ChartSeries(new ChartSeriesId("reserved-capacity"), "Reserved capacity", ChartSeriesKind.StepArea, points);
        return Chart.Create().WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri", "Sat").AddSeries(reserved)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

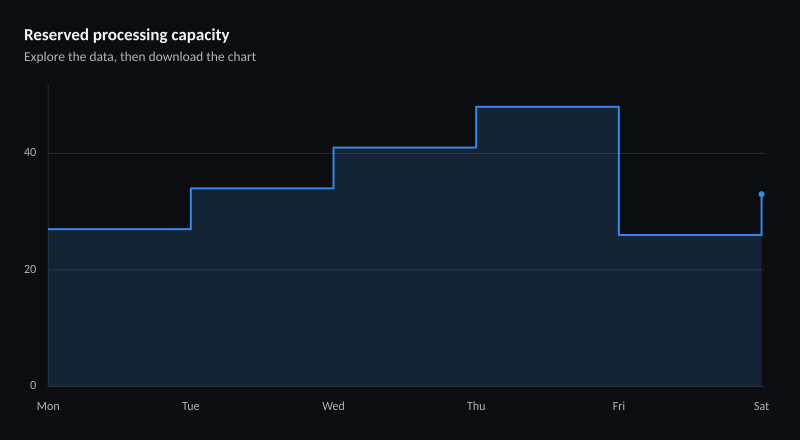

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = StepAreaRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Reserved processing capacity", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds a stepped area showing reserved processing capacity.</summary>
public static class StepAreaRecipe {
    /// <summary>Creates the selected stepped-area example.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var points = Enumerable.Range(1, 6).Where(index => variant != "sparse" || index is 1 or 3 or 6)
            .Select(index => new ChartPoint(index, 20 + index * 7 % 29, variant == "sparse" && index == 6));
        var reserved = new ChartSeries(new ChartSeriesId("reserved-capacity"), "Reserved capacity", ChartSeriesKind.StepArea, points);
        return Chart.Create().WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri", "Sat").AddSeries(reserved)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}
