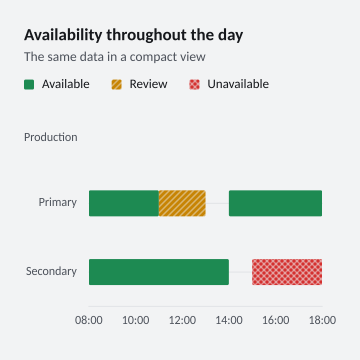

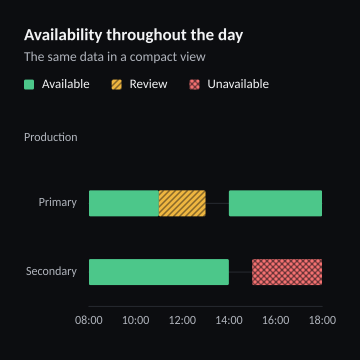

Availability throughout the day

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = StateTimelineRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Availability throughout the day", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Availability intervals retain state keys, details and lane grouping.</summary>
public static class StateTimelineRecipe {
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        var colors = VisualTheme.Graphite().Resolve(mode);
        var start = new DateTime(2026, 3, 2, 8, 0, 0, DateTimeKind.Utc);
        var primary = ChartSeries.CreateStateTimelineLane(new ChartSeriesId("primary"), "Primary", new[] {
            new ChartStateTimelineSegment(start, start.AddHours(3), "pass"),
            new ChartStateTimelineSegment(start.AddHours(3), start.AddHours(5), "warning", "Increased response time"),
            new ChartStateTimelineSegment(start.AddHours(6), start.AddHours(10), "pass")
        }, group: "Production");
        var secondary = ChartSeries.CreateStateTimelineLane(new ChartSeriesId("secondary"), "Secondary", new[] {
            new ChartStateTimelineSegment(start, start.AddHours(6), "pass"),
            new ChartStateTimelineSegment(start.AddHours(7), start.AddHours(10), "critical", "No response")
        }, group: "Production");
        return Chart.Create().WithStateCategories(new ChartStateCategory("pass", "Available", colors.Status.Pass.Fill),
            new ChartStateCategory("warning", "Review", colors.Status.Medium.Fill, ChartStatePattern.Hatched),
            new ChartStateCategory("critical", "Unavailable", colors.Status.Critical.Fill, ChartStatePattern.CrossHatched))
            .AddSeries(primary).AddSeries(secondary).WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = StateTimelineRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Availability throughout the day", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Availability intervals retain state keys, details and lane grouping.</summary>
public static class StateTimelineRecipe {
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        var colors = VisualTheme.Graphite().Resolve(mode);
        var start = new DateTime(2026, 3, 2, 8, 0, 0, DateTimeKind.Utc);
        var primary = ChartSeries.CreateStateTimelineLane(new ChartSeriesId("primary"), "Primary", new[] {
            new ChartStateTimelineSegment(start, start.AddHours(3), "pass"),
            new ChartStateTimelineSegment(start.AddHours(3), start.AddHours(5), "warning", "Increased response time"),
            new ChartStateTimelineSegment(start.AddHours(6), start.AddHours(10), "pass")
        }, group: "Production");
        var secondary = ChartSeries.CreateStateTimelineLane(new ChartSeriesId("secondary"), "Secondary", new[] {
            new ChartStateTimelineSegment(start, start.AddHours(6), "pass"),
            new ChartStateTimelineSegment(start.AddHours(7), start.AddHours(10), "critical", "No response")
        }, group: "Production");
        return Chart.Create().WithStateCategories(new ChartStateCategory("pass", "Available", colors.Status.Pass.Fill),
            new ChartStateCategory("warning", "Review", colors.Status.Medium.Fill, ChartStatePattern.Hatched),
            new ChartStateCategory("critical", "Unavailable", colors.Status.Critical.Fill, ChartStatePattern.CrossHatched))
            .AddSeries(primary).AddSeries(secondary).WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}
