Requests and follow-ups over time

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

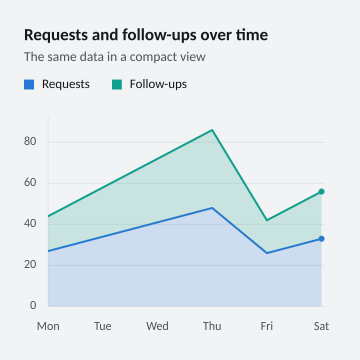

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = StackedAreaRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Requests and follow-ups over time", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds stacked request volumes and normalized stepped capacity shares.</summary>
public static class StackedAreaRecipe {
    /// <summary>Creates the selected stacked-area example.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var chart = Chart.Create();
        if (variant is "options" or "compact-options") {
            var completed = new ChartSeries(new ChartSeriesId("completed"), "Completed", ChartSeriesKind.StackedArea,
                new[] { 45d, 70, 80, 55, 90 }.Select((value, point) => new ChartPoint(point + 1, value)))
                .WithNormalization(100).WithInterpolation(ChartInterpolation.Step, ChartStepPosition.Middle);
            var remaining = new ChartSeries(new ChartSeriesId("remaining"), "Remaining", ChartSeriesKind.StackedArea,
                new[] { 55d, 45, 20, 45, 30 }.Select((value, point) => new ChartPoint(point + 1, value)))
                .WithNormalization(100).WithInterpolation(ChartInterpolation.Step, ChartStepPosition.Middle);
            chart.WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri").WithYAxis("Share (%)")
                .AddSeries(completed).AddSeries(remaining);
            chart.Options.YAxis.WithBounds(0, 100).WithLabelFormatter(Percent);
        }
        else {
            var requests = new ChartSeries(new ChartSeriesId("requests"), "Requests", ChartSeriesKind.StackedArea, Observations(variant, 0));
            var followUps = new ChartSeries(new ChartSeriesId("follow-ups"), "Follow-ups", ChartSeriesKind.StackedArea, Observations(variant, -10));
            chart.WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri", "Sat").AddSeries(requests).AddSeries(followUps);
        }
        return chart.WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }

    private static ChartPoint[] Observations(string variant, double offset) =>
        Enumerable.Range(1, 6).Where(index => variant != "sparse" || index is 1 or 3 or 6)
            .Select(index => new ChartPoint(index, 20 + offset + index * 7 % 29, variant == "sparse" && index == 6)).ToArray();

    private static string Percent(double value) => value.ToString("0", CultureInfo.InvariantCulture) + "%";
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

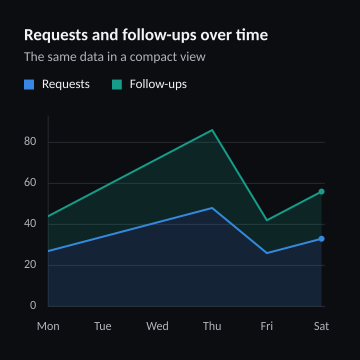

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = StackedAreaRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Requests and follow-ups over time", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds stacked request volumes and normalized stepped capacity shares.</summary>
public static class StackedAreaRecipe {
    /// <summary>Creates the selected stacked-area example.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var chart = Chart.Create();
        if (variant is "options" or "compact-options") {
            var completed = new ChartSeries(new ChartSeriesId("completed"), "Completed", ChartSeriesKind.StackedArea,
                new[] { 45d, 70, 80, 55, 90 }.Select((value, point) => new ChartPoint(point + 1, value)))
                .WithNormalization(100).WithInterpolation(ChartInterpolation.Step, ChartStepPosition.Middle);
            var remaining = new ChartSeries(new ChartSeriesId("remaining"), "Remaining", ChartSeriesKind.StackedArea,
                new[] { 55d, 45, 20, 45, 30 }.Select((value, point) => new ChartPoint(point + 1, value)))
                .WithNormalization(100).WithInterpolation(ChartInterpolation.Step, ChartStepPosition.Middle);
            chart.WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri").WithYAxis("Share (%)")
                .AddSeries(completed).AddSeries(remaining);
            chart.Options.YAxis.WithBounds(0, 100).WithLabelFormatter(Percent);
        }
        else {
            var requests = new ChartSeries(new ChartSeriesId("requests"), "Requests", ChartSeriesKind.StackedArea, Observations(variant, 0));
            var followUps = new ChartSeries(new ChartSeriesId("follow-ups"), "Follow-ups", ChartSeriesKind.StackedArea, Observations(variant, -10));
            chart.WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri", "Sat").AddSeries(requests).AddSeries(followUps);
        }
        return chart.WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }

    private static ChartPoint[] Observations(string variant, double offset) =>
        Enumerable.Range(1, 6).Where(index => variant != "sparse" || index is 1 or 3 or 6)
            .Select(index => new ChartPoint(index, 20 + offset + index * 7 % 29, variant == "sparse" && index == 6)).ToArray();

    private static string Percent(double value) => value.ToString("0", CultureInfo.InvariantCulture) + "%";
}
