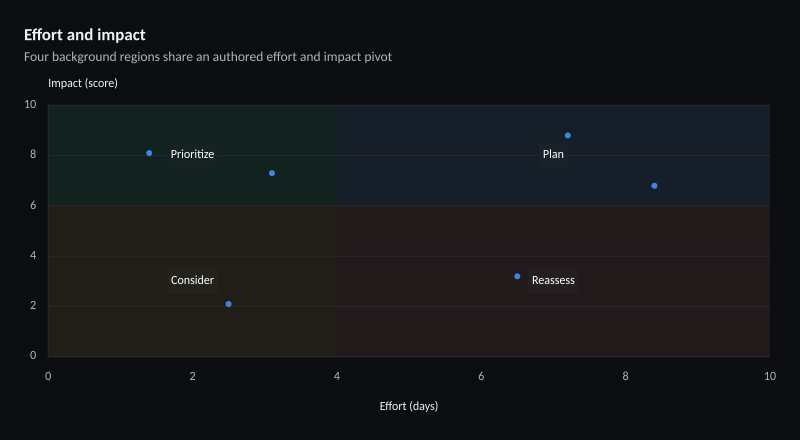

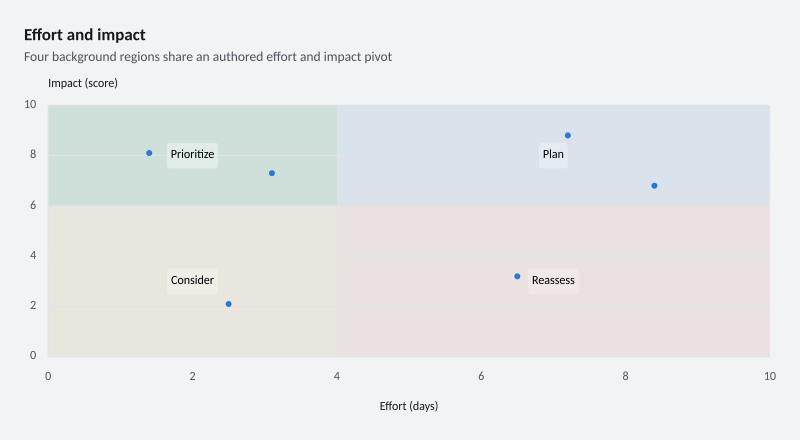

Effort and impact

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = ScatterQuadrantsRecipe.Create("quadrants", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Effort and impact", "Four background regions share an authored effort and impact pivot", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Places proposed work into effort and impact regions.</summary>
public static class ScatterQuadrantsRecipe {
    /// <summary>Creates the selected example without choosing a renderer or export backend.</summary>
    public static Chart Create(string variant = "quadrants", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("quadrants" or "compact-quadrants")) throw new ArgumentOutOfRangeException(nameof(variant));
        return Quadrants().WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }

    private static Chart Quadrants() {
        var proposed = ChartSeries.CreateScatter(new ChartSeriesId("proposed-work"), "Proposed work", new[] {
            new ChartPoint(1.4, 8.1), new ChartPoint(3.1, 7.3), new ChartPoint(7.2, 8.8),
            new ChartPoint(8.4, 6.8), new ChartPoint(2.5, 2.1), new ChartPoint(6.5, 3.2)
        });
        return Chart.Create().WithXAxisBounds(0, 10).WithYAxisBounds(0, 10).WithDataLabels(false)
            .WithXAxis("Effort (days)").WithYAxis("Impact (score)").AddSeries(proposed)
            .AddPlotRegion(new(ChartColor.FromHex("#328c68"), xMaximum: 4, yMinimum: 6, label: "Prioritize", opacity: .18))
            .AddPlotRegion(new(ChartColor.FromHex("#5487b8"), xMinimum: 4, yMinimum: 6, label: "Plan", opacity: .15))
            .AddPlotRegion(new(ChartColor.FromHex("#ac9148"), xMaximum: 4, yMaximum: 6, label: "Consider", opacity: .13))
            .AddPlotRegion(new(ChartColor.FromHex("#ba6d67"), xMinimum: 4, yMaximum: 6, label: "Reassess", opacity: .13));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = ScatterQuadrantsRecipe.Create("quadrants", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Effort and impact", "Four background regions share an authored effort and impact pivot", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Places proposed work into effort and impact regions.</summary>
public static class ScatterQuadrantsRecipe {
    /// <summary>Creates the selected example without choosing a renderer or export backend.</summary>
    public static Chart Create(string variant = "quadrants", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("quadrants" or "compact-quadrants")) throw new ArgumentOutOfRangeException(nameof(variant));
        return Quadrants().WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }

    private static Chart Quadrants() {
        var proposed = ChartSeries.CreateScatter(new ChartSeriesId("proposed-work"), "Proposed work", new[] {
            new ChartPoint(1.4, 8.1), new ChartPoint(3.1, 7.3), new ChartPoint(7.2, 8.8),
            new ChartPoint(8.4, 6.8), new ChartPoint(2.5, 2.1), new ChartPoint(6.5, 3.2)
        });
        return Chart.Create().WithXAxisBounds(0, 10).WithYAxisBounds(0, 10).WithDataLabels(false)
            .WithXAxis("Effort (days)").WithYAxis("Impact (score)").AddSeries(proposed)
            .AddPlotRegion(new(ChartColor.FromHex("#328c68"), xMaximum: 4, yMinimum: 6, label: "Prioritize", opacity: .18))
            .AddPlotRegion(new(ChartColor.FromHex("#5487b8"), xMinimum: 4, yMinimum: 6, label: "Plan", opacity: .15))
            .AddPlotRegion(new(ChartColor.FromHex("#ac9148"), xMaximum: 4, yMaximum: 6, label: "Consider", opacity: .13))
            .AddPlotRegion(new(ChartColor.FromHex("#ba6d67"), xMinimum: 4, yMaximum: 6, label: "Reassess", opacity: .13));
    }
}
