Requests across processing stages

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = SankeyOptionsRecipe.Create("options", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,

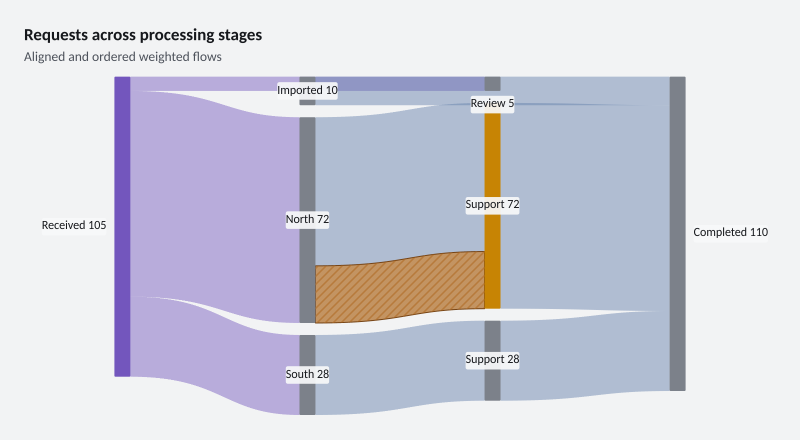

    new VisualFrame("Requests across processing stages", "Aligned and ordered weighted flows", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Aligned and ordered flows retain parallel-link identities and independent link paint.</summary>
public static class SankeyOptionsRecipe {
    public static Chart Create(string variant = "options", VisualThemeMode mode = VisualThemeMode.Light) {
        var requests = ChartSeries.CreateSankey(new ChartSeriesId("request-flows"), "Requests", new[] {
            new ChartNode("received", "Received"), new ChartNode("north", "North"), new ChartNode("south", "South"),
            new ChartNode("north-support", "Support"), new ChartNode("south-support", "Support"), new ChartNode("completed", "Completed"),
            new ChartNode("review", "Review"), new ChartNode("imported", "Imported")
        }, new[] {
            new ChartFlowLink("received-north", "received", "north", 72), new ChartFlowLink("received-south", "received", "south", 28),
            new ChartFlowLink("north-standard", "north", "north-support", 52), new ChartFlowLink("north-priority", "north", "north-support", 20),
            new ChartFlowLink("south-standard", "south", "south-support", 28),
            new ChartFlowLink("north-completed", "north-support", "completed", 72), new ChartFlowLink("south-completed", "south-support", "completed", 28),
            new ChartFlowLink("received-review", "received", "review", 5), new ChartFlowLink("imported-completed", "imported", "completed", 10)
        });
        requests.WithNodeState("north-support", ChartSeriesState.Warning).WithPointColor(0, ChartColor.FromHex("#7356BD"))
            .WithFlowStyle("north-priority", new ChartFlowStyle(fill: ChartColor.FromHex("#AF6B24"), fillOpacity: .7,
                fillPattern: ChartFillPattern.DiagonalForward, stroke: ChartColor.FromHex("#764415"), strokeWidth: 1))
            .WithFlowState("north-priority", ChartSeriesState.Warning);
        return Chart.Create().AddSeries(requests).ConfigureSankey(options => {
            options.Alignment = ChartSankeyAlignment.Center;
            options.VerticalAlignment = ChartSankeyVerticalAlignment.Top;
            options.NodeOrder = ChartSankeyNodeOrder.LabelAscending;
            options.LabelPlacement = ChartSankeyLabelPlacement.Center;
            options.EdgeLabelPlacement = ChartSankeyEdgeLabelPlacement.Outside;
            options.NodeWidth = 16; options.NodeGap = 12; options.NodeCornerRadius = 1;
            options.RibbonFill = ChartColor.FromHex("#607DAA"); options.RibbonOpacity = .45;
        }).WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = SankeyOptionsRecipe.Create("options", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,

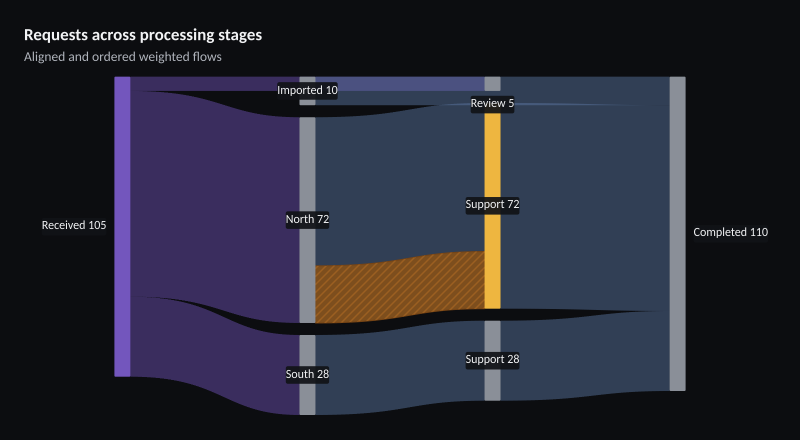

    new VisualFrame("Requests across processing stages", "Aligned and ordered weighted flows", showLegend: null, showSurface: false));
