Requests across processing stages

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

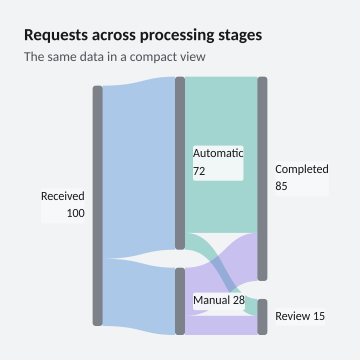

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = SankeyRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Requests across processing stages", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Weighted requests flow through automatic and manual processing.</summary>
public static class SankeyRecipe {
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        var requests = ChartSeries.CreateSankey(new ChartSeriesId("requests"), "Requests", new[] {
            new ChartNode("received", "Received"), new ChartNode("automatic", "Automatic"), new ChartNode("manual", "Manual"),
            new ChartNode("completed", "Completed"), new ChartNode("review", "Review")
        }, new[] {
            new ChartFlowLink("received-automatic", "received", "automatic", 72), new ChartFlowLink("received-manual", "received", "manual", 28),
            new ChartFlowLink("automatic-completed", "automatic", "completed", 65), new ChartFlowLink("automatic-review", "automatic", "review", 7),
            new ChartFlowLink("manual-completed", "manual", "completed", 20), new ChartFlowLink("manual-review", "manual", "review", 8)
        });
        if (variant == "sparse") requests.ReplaceFlowData(new[] {
            new ChartNode("received", "Received"), new ChartNode("completed", "Completed"), new ChartNode("review", "Review")
        }, new[] {
            new ChartFlowLink("received-completed", "received", "completed", 85),
            new ChartFlowLink("received-review", "received", "review", 15)
        });
        return Chart.Create().AddSeries(requests).WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

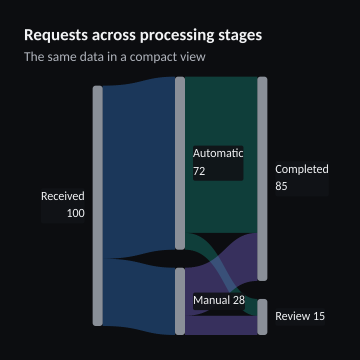

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = SankeyRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Requests across processing stages", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Weighted requests flow through automatic and manual processing.</summary>
public static class SankeyRecipe {
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        var requests = ChartSeries.CreateSankey(new ChartSeriesId("requests"), "Requests", new[] {
            new ChartNode("received", "Received"), new ChartNode("automatic", "Automatic"), new ChartNode("manual", "Manual"),
            new ChartNode("completed", "Completed"), new ChartNode("review", "Review")
        }, new[] {
            new ChartFlowLink("received-automatic", "received", "automatic", 72), new ChartFlowLink("received-manual", "received", "manual", 28),
            new ChartFlowLink("automatic-completed", "automatic", "completed", 65), new ChartFlowLink("automatic-review", "automatic", "review", 7),
            new ChartFlowLink("manual-completed", "manual", "completed", 20), new ChartFlowLink("manual-review", "manual", "review", 8)
        });
        if (variant == "sparse") requests.ReplaceFlowData(new[] {
            new ChartNode("received", "Received"), new ChartNode("completed", "Completed"), new ChartNode("review", "Review")
        }, new[] {
            new ChartFlowLink("received-completed", "received", "completed", 85),
            new ChartFlowLink("received-review", "received", "review", 15)
        });
        return Chart.Create().AddSeries(requests).WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}
