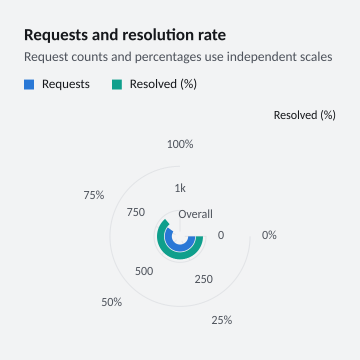

Requests and resolution rate

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = RadialBarScalesRecipe.Create("compact-dual-axes", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Requests and resolution rate", "Request counts and percentages use independent scales", showLegend: true, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Request counts and resolution rates on independent radial value scales.</summary>
public static class RadialBarScalesRecipe {
    /// <summary>Creates count and percentage measures from a rightward start ray.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "dual-axes" or "compact-dual-axes")) throw new ArgumentOutOfRangeException(nameof(variant));
        var requests = new ChartSeries(new ChartSeriesId("requests"), "Requests", ChartSeriesKind.RadialBar, new[] { new ChartPoint(1, 800) });
        var resolved = new ChartSeries(new ChartSeriesId("resolved"), "Resolved (%)", ChartSeriesKind.RadialBar, new[] { new ChartPoint(1, 85) })
            .UseSecondaryYAxis();
        var chart = Chart.Create().WithXLabels("Overall").WithDataLabels(false)
            .WithRadialGeometry(new ChartRadialGeometryOptions(0, 270, .2, .25, .1)).AddSeries(requests).AddSeries(resolved)
            .WithYAxisBounds(0, 1000).WithSecondaryYAxisBounds(0, 100)
            .WithSecondaryYAxis("Resolved (%)", value => value.ToString("0", System.Globalization.CultureInfo.InvariantCulture) + "%");
        chart.Options.YAxis.TickCount = 5;
        chart.Options.SecondaryYAxis.TickCount = 5;
        return chart;
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

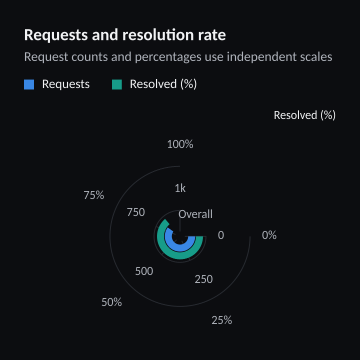

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = RadialBarScalesRecipe.Create("compact-dual-axes", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Requests and resolution rate", "Request counts and percentages use independent scales", showLegend: true, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Request counts and resolution rates on independent radial value scales.</summary>
public static class RadialBarScalesRecipe {
    /// <summary>Creates count and percentage measures from a rightward start ray.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "dual-axes" or "compact-dual-axes")) throw new ArgumentOutOfRangeException(nameof(variant));
        var requests = new ChartSeries(new ChartSeriesId("requests"), "Requests", ChartSeriesKind.RadialBar, new[] { new ChartPoint(1, 800) });
        var resolved = new ChartSeries(new ChartSeriesId("resolved"), "Resolved (%)", ChartSeriesKind.RadialBar, new[] { new ChartPoint(1, 85) })
            .UseSecondaryYAxis();
        var chart = Chart.Create().WithXLabels("Overall").WithDataLabels(false)
            .WithRadialGeometry(new ChartRadialGeometryOptions(0, 270, .2, .25, .1)).AddSeries(requests).AddSeries(resolved)
            .WithYAxisBounds(0, 1000).WithSecondaryYAxisBounds(0, 100)
            .WithSecondaryYAxis("Resolved (%)", value => value.ToString("0", System.Globalization.CultureInfo.InvariantCulture) + "%");
        chart.Options.YAxis.TickCount = 5;
        chart.Options.SecondaryYAxis.TickCount = 5;
        return chart;
    }
}
