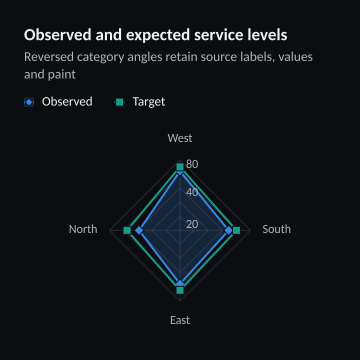

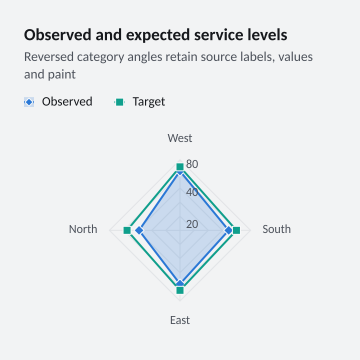

Observed and expected service levels

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = RadarRecipe.Create("compact-angular-reversal", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Observed and expected service levels", "Reversed category angles retain source labels, values and paint", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Observed service levels compared with expected values or a marked target line.</summary>
public static class RadarRecipe {
    /// <summary>Creates shared radar categories with marker options or reversed angular order.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options" or "angular-reversal" or "compact-angular-reversal"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        if (variant is "angular-reversal" or "compact-angular-reversal") return Reversed();
        if (variant is "options" or "compact-options") return Markers();
        var observed = new ChartSeries(new ChartSeriesId("observed"), "Observed", ChartSeriesKind.Radar, Observations(variant));
        var expected = new ChartSeries(new ChartSeriesId("expected"), "Expected", ChartSeriesKind.Radar, Observations(variant, 12));
        return Chart.Create().WithXLabels("Speed", "Coverage", "Capacity", "Quality", "Recovery", "Support")
            .AddSeries(observed).AddSeries(expected)
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }

    private static Chart Markers() {
        var observed = new ChartSeries(new ChartSeriesId("observed"), "Observed", ChartSeriesKind.Radar, Points(58, 76, 69, 84, 62, 73))
            .ConfigureRadar(options => options.FillOpacity = .2)
            .ConfigureMarkers(markers => { markers.Shape = ChartMarkerShape.Diamond; markers.Enabled = true; });
        var target = new ChartSeries(new ChartSeriesId("target"), "Target", ChartSeriesKind.Radar, Points(75, 85, 80, 90, 75, 85))
            .ConfigureRadar(options => options.Form = ChartLineAreaForm.Line)
            .ConfigureMarkers(markers => { markers.Shape = ChartMarkerShape.Square; markers.Enabled = true; });
        return Chart.Create().WithXLabels("Speed", "Coverage", "Capacity", "Quality", "Recovery", "Support")
            .WithYAxisBounds(0, 100).AddSeries(observed).AddSeries(target)
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }

    private static Chart Reversed() {
        var observed = new ChartSeries(new ChartSeriesId("observed"), "Observed", ChartSeriesKind.Radar, Points(58, 76, 69, 84))
            .ConfigureRadar(options => options.FillOpacity = .2)
            .ConfigureMarkers(markers => { markers.Shape = ChartMarkerShape.Diamond; markers.Radius = 5; });
        var target = new ChartSeries(new ChartSeriesId("target"), "Target", ChartSeriesKind.Radar, Points(75, 85, 80, 90))
            .ConfigureRadar(options => options.Form = ChartLineAreaForm.Line)
            .ConfigureMarkers(markers => { markers.Shape = ChartMarkerShape.Square; markers.Radius = 4; });
        return Chart.Create().WithXLabels("North", "East", "South", "West").WithYAxisBounds(0, 100).WithDataLabels(false)
            .AddSeries(observed).AddSeries(target).ConfigureXAxis(axis => axis.WithReversal())
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }

    private static ChartPoint[] Points(params double[] values) => values.Select((value, index) => new ChartPoint(index + 1, value)).ToArray();
    private static ChartPoint[] Observations(string variant, double offset = 0) => (variant == "sparse" ? new[] { 1, 3, 6 } : Enumerable.Range(1, 6))
        .Select(index => new ChartPoint(index, 20 + offset + index * 7 % 29)).ToArray();
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = RadarRecipe.Create("compact-angular-reversal", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Observed and expected service levels", "Reversed category angles retain source labels, values and paint", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Observed service levels compared with expected values or a marked target line.</summary>
public static class RadarRecipe {
    /// <summary>Creates shared radar categories with marker options or reversed angular order.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options" or "angular-reversal" or "compact-angular-reversal"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        if (variant is "angular-reversal" or "compact-angular-reversal") return Reversed();
        if (variant is "options" or "compact-options") return Markers();
        var observed = new ChartSeries(new ChartSeriesId("observed"), "Observed", ChartSeriesKind.Radar, Observations(variant));
        var expected = new ChartSeries(new ChartSeriesId("expected"), "Expected", ChartSeriesKind.Radar, Observations(variant, 12));
        return Chart.Create().WithXLabels("Speed", "Coverage", "Capacity", "Quality", "Recovery", "Support")
            .AddSeries(observed).AddSeries(expected)
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }

    private static Chart Markers() {
        var observed = new ChartSeries(new ChartSeriesId("observed"), "Observed", ChartSeriesKind.Radar, Points(58, 76, 69, 84, 62, 73))
            .ConfigureRadar(options => options.FillOpacity = .2)
            .ConfigureMarkers(markers => { markers.Shape = ChartMarkerShape.Diamond; markers.Enabled = true; });
        var target = new ChartSeries(new ChartSeriesId("target"), "Target", ChartSeriesKind.Radar, Points(75, 85, 80, 90, 75, 85))
            .ConfigureRadar(options => options.Form = ChartLineAreaForm.Line)
            .ConfigureMarkers(markers => { markers.Shape = ChartMarkerShape.Square; markers.Enabled = true; });
        return Chart.Create().WithXLabels("Speed", "Coverage", "Capacity", "Quality", "Recovery", "Support")
            .WithYAxisBounds(0, 100).AddSeries(observed).AddSeries(target)
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }

    private static Chart Reversed() {
        var observed = new ChartSeries(new ChartSeriesId("observed"), "Observed", ChartSeriesKind.Radar, Points(58, 76, 69, 84))
            .ConfigureRadar(options => options.FillOpacity = .2)
            .ConfigureMarkers(markers => { markers.Shape = ChartMarkerShape.Diamond; markers.Radius = 5; });
        var target = new ChartSeries(new ChartSeriesId("target"), "Target", ChartSeriesKind.Radar, Points(75, 85, 80, 90))
            .ConfigureRadar(options => options.Form = ChartLineAreaForm.Line)
            .ConfigureMarkers(markers => { markers.Shape = ChartMarkerShape.Square; markers.Radius = 4; });
        return Chart.Create().WithXLabels("North", "East", "South", "West").WithYAxisBounds(0, 100).WithDataLabels(false)
            .AddSeries(observed).AddSeries(target).ConfigureXAxis(axis => axis.WithReversal())
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }

    private static ChartPoint[] Points(params double[] values) => values.Select((value, index) => new ChartPoint(index + 1, value)).ToArray();
    private static ChartPoint[] Observations(string variant, double offset = 0) => (variant == "sparse" ? new[] { 1, 3, 6 } : Enumerable.Range(1, 6))
        .Select(index => new ChartPoint(index, 20 + offset + index * 7 % 29)).ToArray();
}
