Service revenue in radial segments

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

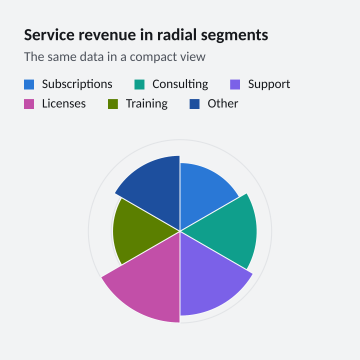

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = PolarAreaRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Service revenue in radial segments", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Service revenue encoded by radial area, with an optional reversed category example.</summary>
public static class PolarAreaRecipe {
    /// <summary>Creates radial revenue segments; the reversal variant retains a zero-valued category and point paint.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options" or "angular-reversal" or "compact-angular-reversal"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        if (variant is "angular-reversal" or "compact-angular-reversal") {
            var reversedRevenue = new ChartSeries(new ChartSeriesId("revenue"), "Revenue", ChartSeriesKind.PolarArea,
                new[] { new ChartPoint(1, 92), new ChartPoint(2, 0), new ChartPoint(3, 58), new ChartPoint(4, 74) })
                .WithPointColor(0, ChartColor.FromHex("#2563EB")).WithPointFillPattern(2, ChartFillPattern.DiagonalForward);
            return Chart.Create().WithXLabels("North", "East", "South", "West").WithDataLabels().AddSeries(reversedRevenue)
                .ConfigureXAxis(axis => axis.WithReversal())
                .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
        }
        var points = (variant == "sparse" ? new[] { 1, 3, 6 } : Enumerable.Range(1, 6))
            .Select(index => new ChartPoint(index, 20 + index * 7 % 29));
        var revenue = new ChartSeries(new ChartSeriesId("revenue"), "Revenue", ChartSeriesKind.PolarArea, points);
        return Chart.Create().WithXLabels("Subscriptions", "Consulting", "Support", "Licenses", "Training", "Other").AddSeries(revenue)
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

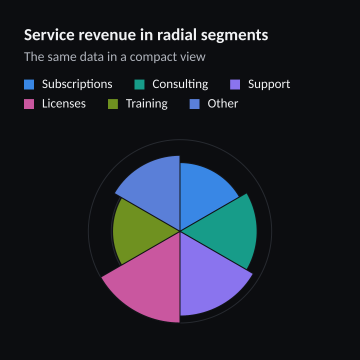

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = PolarAreaRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Service revenue in radial segments", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Service revenue encoded by radial area, with an optional reversed category example.</summary>
public static class PolarAreaRecipe {
    /// <summary>Creates radial revenue segments; the reversal variant retains a zero-valued category and point paint.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options" or "angular-reversal" or "compact-angular-reversal"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        if (variant is "angular-reversal" or "compact-angular-reversal") {
            var reversedRevenue = new ChartSeries(new ChartSeriesId("revenue"), "Revenue", ChartSeriesKind.PolarArea,
                new[] { new ChartPoint(1, 92), new ChartPoint(2, 0), new ChartPoint(3, 58), new ChartPoint(4, 74) })
                .WithPointColor(0, ChartColor.FromHex("#2563EB")).WithPointFillPattern(2, ChartFillPattern.DiagonalForward);
            return Chart.Create().WithXLabels("North", "East", "South", "West").WithDataLabels().AddSeries(reversedRevenue)
                .ConfigureXAxis(axis => axis.WithReversal())
                .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
        }
        var points = (variant == "sparse" ? new[] { 1, 3, 6 } : Enumerable.Range(1, 6))
            .Select(index => new ChartPoint(index, 20 + index * 7 % 29));
        var revenue = new ChartSeries(new ChartSeriesId("revenue"), "Revenue", ChartSeriesKind.PolarArea, points);
        return Chart.Create().WithXLabels("Subscriptions", "Consulting", "Support", "Licenses", "Training", "Other").AddSeries(revenue)
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }
}
