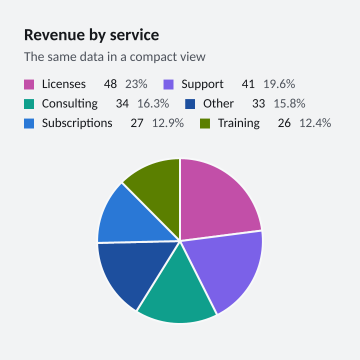

Revenue by service

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = PieRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Revenue by service", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Revenue shares with optional slice labels, an offset slice and a fill pattern.</summary>
public static class PieRecipe {
    /// <summary>Creates revenue by service; the options variant labels and separates selected slices.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var revenue = new ChartSeries(new ChartSeriesId("revenue"), "Revenue", ChartSeriesKind.Pie, Observations(variant));
        var chart = Chart.Create().WithXLabels("Subscriptions", "Consulting", "Support", "Licenses", "Training", "Other")
            .AddSeries(revenue).WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
        if (variant == "options") {
            chart.WithDataLabels().WithPieSliceLabelContent(ChartPieSliceLabelContent.Label);
            revenue.WithPointSliceOffset(0, .12).WithPointFillPattern(1, ChartFillPattern.Crosshatch);
        }
        return chart;
    }

    private static ChartPoint[] Observations(string variant) => (variant == "sparse" ? new[] { 1, 3, 6 } : Enumerable.Range(1, 6))
        .Select(index => new ChartPoint(index, 20 + index * 7 % 29)).ToArray();
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

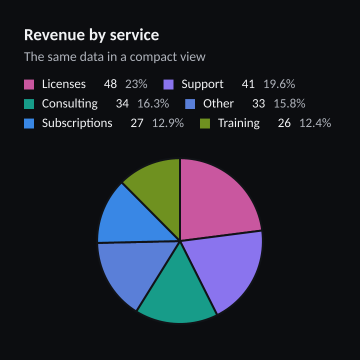

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = PieRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Revenue by service", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Revenue shares with optional slice labels, an offset slice and a fill pattern.</summary>
public static class PieRecipe {
    /// <summary>Creates revenue by service; the options variant labels and separates selected slices.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var revenue = new ChartSeries(new ChartSeriesId("revenue"), "Revenue", ChartSeriesKind.Pie, Observations(variant));
        var chart = Chart.Create().WithXLabels("Subscriptions", "Consulting", "Support", "Licenses", "Training", "Other")
            .AddSeries(revenue).WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
        if (variant == "options") {
            chart.WithDataLabels().WithPieSliceLabelContent(ChartPieSliceLabelContent.Label);
            revenue.WithPointSliceOffset(0, .12).WithPointFillPattern(1, ChartFillPattern.Crosshatch);
        }
        return chart;
    }

    private static ChartPoint[] Observations(string variant) => (variant == "sparse" ? new[] { 1, 3, 6 } : Enumerable.Range(1, 6))
        .Select(index => new ChartPoint(index, 20 + index * 7 % 29)).ToArray();
}
