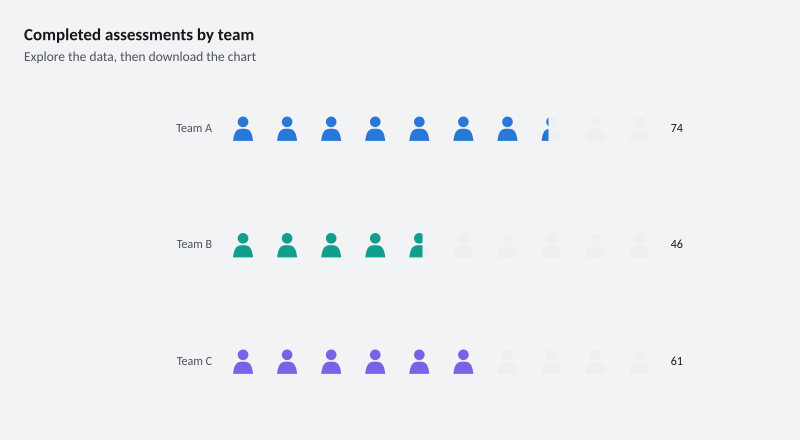

Completed assessments by team

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = PictorialRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Completed assessments by team", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Assessment counts shown through repeated person symbols.</summary>
public static class PictorialRecipe {
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        var chart = Chart.Create().AddPictorial("Assessments", new[] {
            new ChartPictorialItem("Team A", 74), new ChartPictorialItem("Team B", 46), new ChartPictorialItem("Team C", 61)
        }, ChartPictorialShape.Person).WithPictorialMaximum(100).WithPictorialValuePerSymbol(10).WithPictorialColumns(10);
        if (variant == "options") chart.WithPictorialSvgPath("M2 2H22V22H2Z M8 8V16H16V8Z", new ChartRect(0, 0, 24, 24));
        return chart.WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

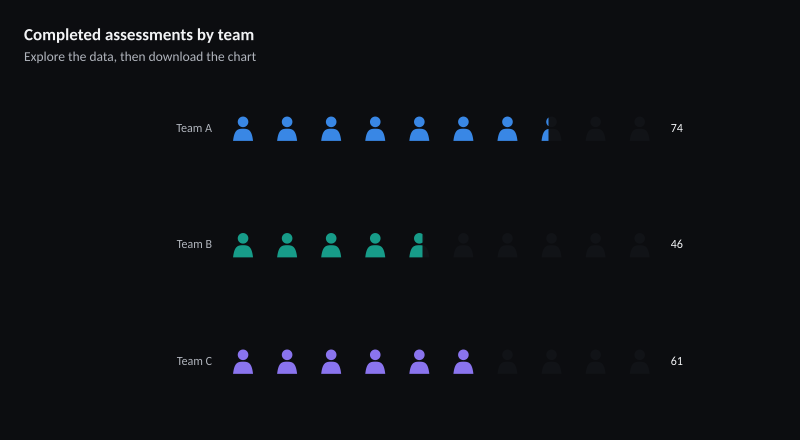

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = PictorialRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Completed assessments by team", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Assessment counts shown through repeated person symbols.</summary>
public static class PictorialRecipe {
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        var chart = Chart.Create().AddPictorial("Assessments", new[] {
            new ChartPictorialItem("Team A", 74), new ChartPictorialItem("Team B", 46), new ChartPictorialItem("Team C", 61)
        }, ChartPictorialShape.Person).WithPictorialMaximum(100).WithPictorialValuePerSymbol(10).WithPictorialColumns(10);
        if (variant == "options") chart.WithPictorialSvgPath("M2 2H22V22H2Z M8 8V16H16V8Z", new ChartRect(0, 0, 24, 24));
        return chart.WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}
