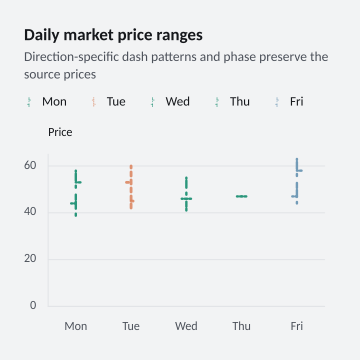

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.
For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.
using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;
var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = OhlcRecipe.Create("compact-dashed", mode);
var context = new VisualRenderContext(
new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
new VisualFrame("Daily market price ranges", "Direction-specific dash patterns and phase preserve the source prices", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());
/// <summary>Builds daily opening, high, low and closing prices as tick marks.</summary>
public static class OhlcRecipe {
/// <summary>Creates the selected OHLC example with optional rising and falling stroke styles.</summary>
public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options" or "dashed" or "compact-dashed"))
throw new ArgumentOutOfRangeException(nameof(variant));
var chart = Chart.Create();
if (variant is "options" or "compact-options" or "dashed" or "compact-dashed") {
var prices = ChartSeries.CreateOhlc(new ChartSeriesId("daily-prices"), "Daily prices", new[] {
new ChartCandlestick(1, 44, 58, 38, 53), new ChartCandlestick(2, 53, 60, 42, 45),
new ChartCandlestick(3, 46, 55, 41, 46), new ChartCandlestick(4, 47, 47, 47, 47),
new ChartCandlestick(5, 47, 63, 44, 58)
});
prices.ConfigureFinancial(financial => {
financial.Rising.Stroke = ChartColor.FromHex("#2A967B");
financial.Rising.StrokeWidth = 2.4;
financial.Falling.Stroke = ChartColor.FromHex("#DB825B");
financial.Falling.StrokeWidth = 2.8;
financial.Falling.StrokeOpacity = .85;
}).WithPointColor(4, "#729BB7");
if (variant is "dashed" or "compact-dashed") prices.ConfigureFinancial(financial => {
financial.Rising.DashPattern = new[] { 7d, 5d, 2d };
financial.Rising.DashOffset = -3;
financial.Falling.DashPattern = new[] { 4d, 4d };
financial.Falling.DashOffset = 2;
});
chart.WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri").WithYAxis("Price")
.WithPointLegend().WithDataLabels(false).AddSeries(prices);
}
else {
var count = variant == "sparse" ? 2 : 5;
var values = Enumerable.Range(1, count).Select(index => new ChartCandlestick(index, 30 + index * 3,
44 + index * 3, 20 + index * 3, index % 2 == 0 ? 26 + index * 3 : 38 + index * 3));
var prices = ChartSeries.CreateOhlc(new ChartSeriesId("market-price"), "Market price", values);
chart.WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri", "Sat").AddSeries(prices);
}
return chart.WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
}
}
using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

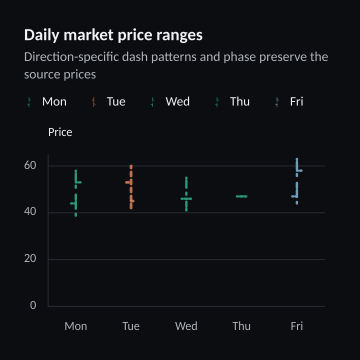

var mode = VisualThemeMode.Dark;
