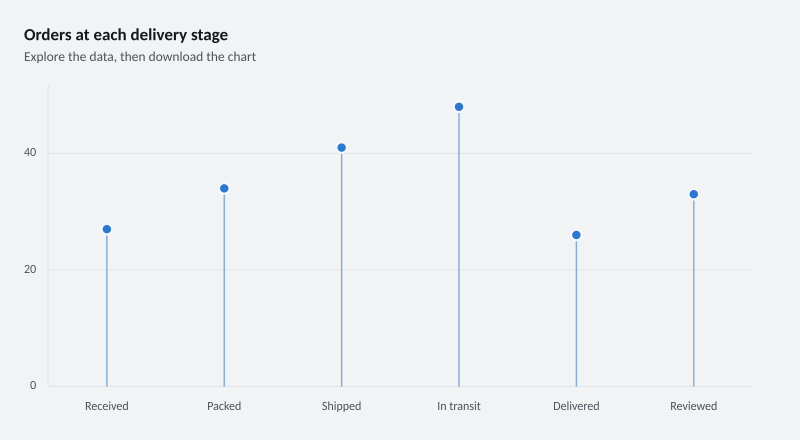

Orders at each delivery stage

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = LollipopRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Orders at each delivery stage", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds a lollipop comparison of orders at each delivery stage.</summary>
public static class LollipopRecipe {
    /// <summary>Creates the selected lollipop example.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var points = Enumerable.Range(1, 6).Where(index => variant != "sparse" || index is 1 or 3 or 6)
            .Select(index => new ChartPoint(index, 20 + index * 7 % 29));
        var orders = new ChartSeries(new ChartSeriesId("orders"), "Orders", ChartSeriesKind.Lollipop, points);
        return Chart.Create().WithXLabels("Received", "Packed", "Shipped", "In transit", "Delivered", "Reviewed").AddSeries(orders)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

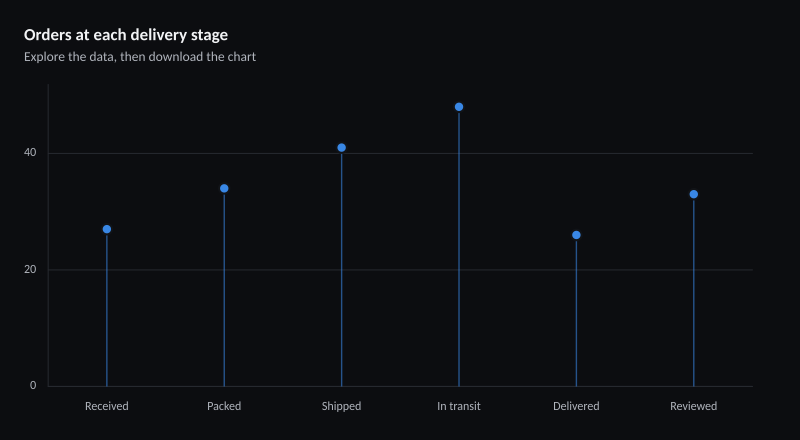

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = LollipopRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Orders at each delivery stage", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds a lollipop comparison of orders at each delivery stage.</summary>
public static class LollipopRecipe {
    /// <summary>Creates the selected lollipop example.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var points = Enumerable.Range(1, 6).Where(index => variant != "sparse" || index is 1 or 3 or 6)
            .Select(index => new ChartPoint(index, 20 + index * 7 % 29));
        var orders = new ChartSeries(new ChartSeriesId("orders"), "Orders", ChartSeriesKind.Lollipop, points);
        return Chart.Create().WithXLabels("Received", "Packed", "Shipped", "In transit", "Delivered", "Reviewed").AddSeries(orders)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}
