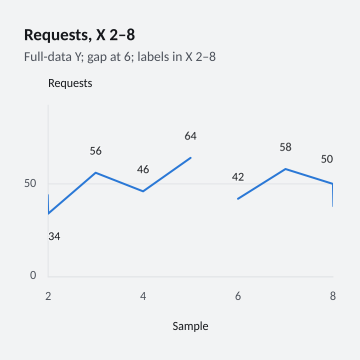

Requests, X 2–8

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = LineViewportRecipe.Create("compact-x-viewport", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Requests, X 2\u20138", "Full-data Y; gap at 6; labels in X 2\u20138", showLegend: false, showSurface: false));
var prepared = model.Prepare(context, new ChartXViewport(2, 8));
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Authored requests and utilization retain outside observations while selecting X 2–8 for rendering.</summary>
public static class LineViewportRecipe {
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        var compact = variant.StartsWith("compact", StringComparison.Ordinal);
        var observed = new ChartSeries(new ChartSeriesId("observed"), "Observed", ChartSeriesKind.Line,
            Points(88, 44, 34, 56, 46, 64, 42, 58, 50, 38, 82)).ConfigureMarkers(markers => markers.Radius = 3);

        var chart = Chart.Create().WithXAxis("Sample").WithYAxis("Requests").WithXAxisBounds(0, 10).WithDataLabels().AddSeries(observed);
        if (!compact) {
            observed.WithDataLabels(false);
            var utilization = new ChartSeries(new ChartSeriesId("utilization"), "Utilization", ChartSeriesKind.Line,
                Points(96, 72, 48, 61, 55, 76, 49, 67, 59, 84, 100))
                .UseSecondaryYAxis().ConfigureMarkers(markers => markers.Radius = 3);

            chart.AddSeries(utilization).WithSecondaryYAxis("Utilization (%)");
            chart.Options.SecondaryYAxis.TickCount = 4;
        }
        chart.Options.XAxis.WithReversal(false);
        chart.Options.XAxis.TickCount = 4; chart.Options.YAxis.TickCount = 4;
        return chart;
    }

    private static ChartPoint[] Points(params double[] values) => values.Select((value, index) =>
        new ChartPoint(index == 1 ? 1.99 : index == 9 ? 8.01 : index, value, index == 6)).ToArray();
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

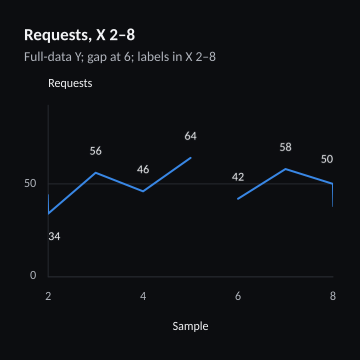

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = LineViewportRecipe.Create("compact-x-viewport", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Requests, X 2\u20138", "Full-data Y; gap at 6; labels in X 2\u20138", showLegend: false, showSurface: false));
var prepared = model.Prepare(context, new ChartXViewport(2, 8));
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Authored requests and utilization retain outside observations while selecting X 2–8 for rendering.</summary>
public static class LineViewportRecipe {
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        var compact = variant.StartsWith("compact", StringComparison.Ordinal);
        var observed = new ChartSeries(new ChartSeriesId("observed"), "Observed", ChartSeriesKind.Line,
            Points(88, 44, 34, 56, 46, 64, 42, 58, 50, 38, 82)).ConfigureMarkers(markers => markers.Radius = 3);

        var chart = Chart.Create().WithXAxis("Sample").WithYAxis("Requests").WithXAxisBounds(0, 10).WithDataLabels().AddSeries(observed);
        if (!compact) {
            observed.WithDataLabels(false);
            var utilization = new ChartSeries(new ChartSeriesId("utilization"), "Utilization", ChartSeriesKind.Line,
                Points(96, 72, 48, 61, 55, 76, 49, 67, 59, 84, 100))
                .UseSecondaryYAxis().ConfigureMarkers(markers => markers.Radius = 3);

            chart.AddSeries(utilization).WithSecondaryYAxis("Utilization (%)");
            chart.Options.SecondaryYAxis.TickCount = 4;
        }
        chart.Options.XAxis.WithReversal(false);
        chart.Options.XAxis.TickCount = 4; chart.Options.YAxis.TickCount = 4;
        return chart;
    }

    private static ChartPoint[] Points(params double[] values) => values.Select((value, index) =>
        new ChartPoint(index == 1 ? 1.99 : index == 9 ? 8.01 : index, value, index == 6)).ToArray();
}
