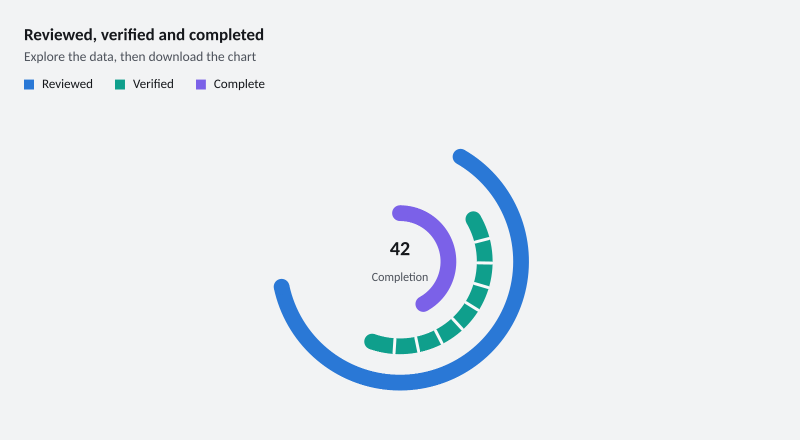

Reviewed, verified and completed

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = LayeredRadialRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Reviewed, verified and completed", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Three independently sized radial layers for reviewed, verified and complete work.</summary>
public static class LayeredRadialRecipe {
    /// <summary>Creates three completion layers with different radii, sweeps and separators.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var completion = ChartSeries.CreateLayeredRadial(new ChartSeriesId("completion"), "Completion", new[] {
            new ChartRadialLayer("Reviewed", 76) { RadiusRatio = 1, StrokeRatio = .13, SweepAngleDegrees = 300, StartAngleDegrees = -60 },
            new ChartRadialLayer("Verified", 58) { RadiusRatio = .7, StrokeRatio = .13, SweepAngleDegrees = 240, StartAngleDegrees = -30, SeparatorCount = 8 },
            new ChartRadialLayer("Complete", 42) { RadiusRatio = .4, StrokeRatio = .13, SweepAngleDegrees = 360 }
        });
        return Chart.Create().WithXLabels("North", "South", "East", "West", "Central", "Online").AddSeries(completion)
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

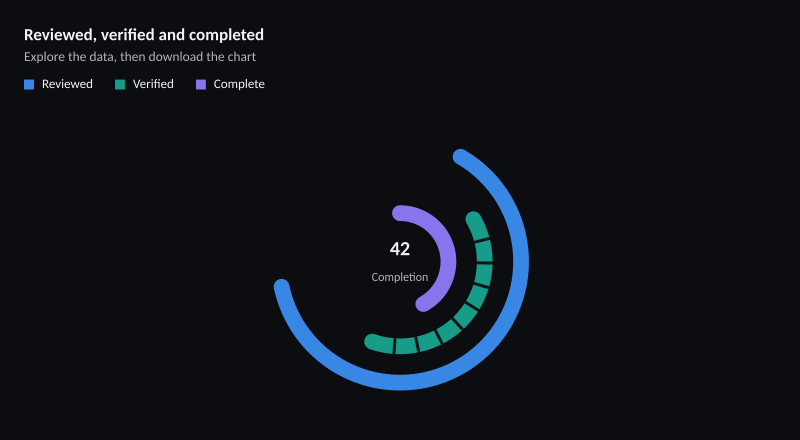

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = LayeredRadialRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Reviewed, verified and completed", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Three independently sized radial layers for reviewed, verified and complete work.</summary>
public static class LayeredRadialRecipe {
    /// <summary>Creates three completion layers with different radii, sweeps and separators.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var completion = ChartSeries.CreateLayeredRadial(new ChartSeriesId("completion"), "Completion", new[] {
            new ChartRadialLayer("Reviewed", 76) { RadiusRatio = 1, StrokeRatio = .13, SweepAngleDegrees = 300, StartAngleDegrees = -60 },
            new ChartRadialLayer("Verified", 58) { RadiusRatio = .7, StrokeRatio = .13, SweepAngleDegrees = 240, StartAngleDegrees = -30, SeparatorCount = 8 },
            new ChartRadialLayer("Complete", 42) { RadiusRatio = .4, StrokeRatio = .13, SweepAngleDegrees = 360 }
        });
        return Chart.Create().WithXLabels("North", "South", "East", "West", "Central", "Online").AddSeries(completion)
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
    }
}
