Coverage across service areas

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = HeatmapRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,

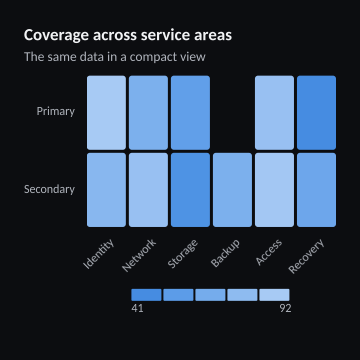

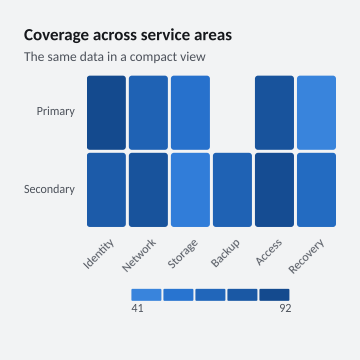

    new VisualFrame("Coverage across service areas", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Shows optional coverage measurements across service areas.</summary>
public static class HeatmapRecipe {
    /// <summary>Creates numeric coverage rows, preserving empty cell positions.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "compact-options")) throw new ArgumentOutOfRangeException(nameof(variant));
        return Chart.Create().WithXLabels("Identity", "Network", "Storage", "Backup", "Access", "Recovery")
            .AddHeatmapRow("Primary", variant == "sparse" ? new double?[] { 92, null, null, 70, null, 41 } : new double?[] { 92, 70, 56, null, 84, 41 },
                id: new ChartSeriesId("primary-measurements"))
            .AddHeatmapRow("Secondary", variant == "sparse" ? new double?[] { null, 84, null, null, 90, null } : new double?[] { 76, 84, 46, 70, 90, 62 },
                id: new ChartSeriesId("secondary-measurements"))
            .WithHeatmapScale(ChartHeatmapScale.Sequential).WithHeatmapCellGap(3).WithHeatmapCellRadius(3)
            .WithHeatmapValueTextMode(ChartHeatmapValueTextMode.Auto)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = HeatmapRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Coverage across service areas", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Shows optional coverage measurements across service areas.</summary>
public static class HeatmapRecipe {
    /// <summary>Creates numeric coverage rows, preserving empty cell positions.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "compact-options")) throw new ArgumentOutOfRangeException(nameof(variant));
        return Chart.Create().WithXLabels("Identity", "Network", "Storage", "Backup", "Access", "Recovery")
            .AddHeatmapRow("Primary", variant == "sparse" ? new double?[] { 92, null, null, 70, null, 41 } : new double?[] { 92, 70, 56, null, 84, 41 },
                id: new ChartSeriesId("primary-measurements"))
            .AddHeatmapRow("Secondary", variant == "sparse" ? new double?[] { null, 84, null, null, 90, null } : new double?[] { 76, 84, 46, 70, 90, 62 },
                id: new ChartSeriesId("secondary-measurements"))
            .WithHeatmapScale(ChartHeatmapScale.Sequential).WithHeatmapCellGap(3).WithHeatmapCellRadius(3)
            .WithHeatmapValueTextMode(ChartHeatmapValueTextMode.Auto)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}
