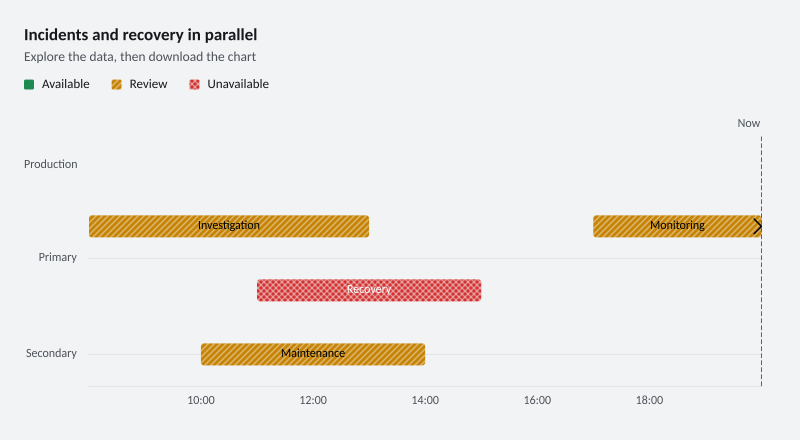

Incidents and recovery in parallel

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = GanttLaneRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Incidents and recovery in parallel", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Overlapping and open incidents share a deliberate current instant.</summary>
public static class GanttLaneRecipe {
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        var colors = VisualTheme.Graphite().Resolve(mode);
        var start = new DateTime(2026, 3, 2, 8, 0, 0, DateTimeKind.Utc);
        var primary = ChartSeries.CreateGanttLane(new ChartSeriesId("primary"), "Primary", new[] {
            new ChartGanttLaneItem(start, start.AddHours(5), "warning", "Investigation", "Degraded response time"),
            new ChartGanttLaneItem(start.AddHours(3), start.AddHours(7), "critical", "Recovery"),
            new ChartGanttLaneItem(start.AddHours(9), null, "warning", "Monitoring")
        }, "Production");
        var secondary = ChartSeries.CreateGanttLane(new ChartSeriesId("secondary"), "Secondary", new[] {
            new ChartGanttLaneItem(start.AddHours(2), start.AddHours(6), "warning", "Maintenance")
        }, "Production");
        return Chart.Create().WithStateCategories(new ChartStateCategory("pass", "Available", colors.Status.Pass.Fill),
            new ChartStateCategory("warning", "Review", colors.Status.Medium.Fill, ChartStatePattern.Hatched),
            new ChartStateCategory("critical", "Unavailable", colors.Status.Critical.Fill, ChartStatePattern.CrossHatched))
            .WithGanttLaneNow(start.AddHours(12)).AddSeries(primary).AddSeries(secondary)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

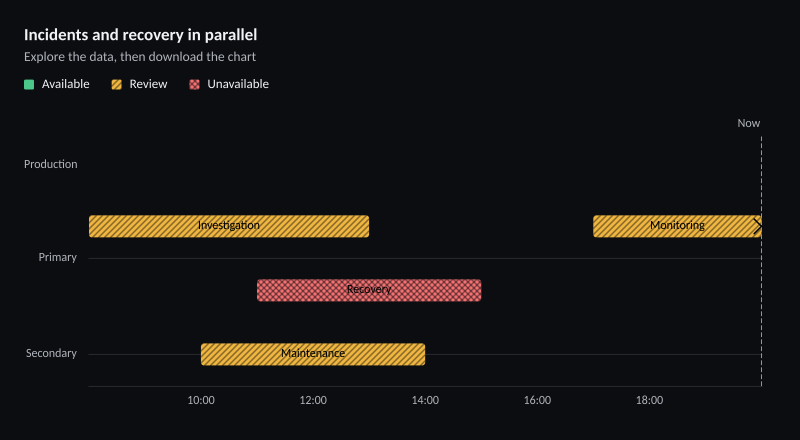

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = GanttLaneRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Incidents and recovery in parallel", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Overlapping and open incidents share a deliberate current instant.</summary>
public static class GanttLaneRecipe {
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        var colors = VisualTheme.Graphite().Resolve(mode);
        var start = new DateTime(2026, 3, 2, 8, 0, 0, DateTimeKind.Utc);
        var primary = ChartSeries.CreateGanttLane(new ChartSeriesId("primary"), "Primary", new[] {
            new ChartGanttLaneItem(start, start.AddHours(5), "warning", "Investigation", "Degraded response time"),
            new ChartGanttLaneItem(start.AddHours(3), start.AddHours(7), "critical", "Recovery"),
            new ChartGanttLaneItem(start.AddHours(9), null, "warning", "Monitoring")
        }, "Production");
        var secondary = ChartSeries.CreateGanttLane(new ChartSeriesId("secondary"), "Secondary", new[] {
            new ChartGanttLaneItem(start.AddHours(2), start.AddHours(6), "warning", "Maintenance")
        }, "Production");
        return Chart.Create().WithStateCategories(new ChartStateCategory("pass", "Available", colors.Status.Pass.Fill),
            new ChartStateCategory("warning", "Review", colors.Status.Medium.Fill, ChartStatePattern.Hatched),
            new ChartStateCategory("critical", "Unavailable", colors.Status.Critical.Fill, ChartStatePattern.CrossHatched))
            .WithGanttLaneNow(start.AddHours(12)).AddSeries(primary).AddSeries(secondary)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}
