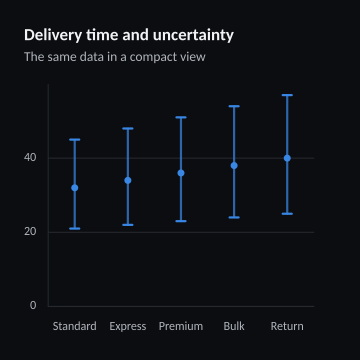

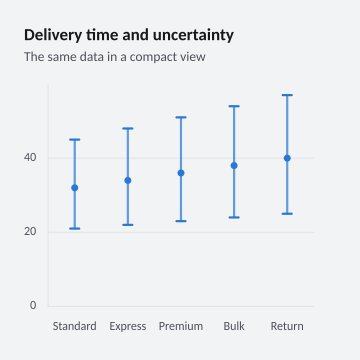

Delivery time and uncertainty

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = ErrorBarRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Delivery time and uncertainty", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds delivery-time observations with lower and upper uncertainty limits.</summary>
public static class ErrorBarRecipe {
    /// <summary>Creates the selected error-bar example from typed measurements.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var count = variant == "sparse" ? 2 : 5;
        var measurements = Enumerable.Range(1, count)
            .Select(index => new ChartErrorBar(index, 30 + index * 2, 20 + index, 42 + index * 3));
        var delivery = ChartSeries.CreateErrorBar(new ChartSeriesId("delivery-time"), "Delivery time", measurements);
        return Chart.Create().WithXLabels("Standard", "Express", "Premium", "Bulk", "Return").AddSeries(delivery)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = ErrorBarRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Delivery time and uncertainty", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds delivery-time observations with lower and upper uncertainty limits.</summary>
public static class ErrorBarRecipe {
    /// <summary>Creates the selected error-bar example from typed measurements.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var count = variant == "sparse" ? 2 : 5;
        var measurements = Enumerable.Range(1, count)
            .Select(index => new ChartErrorBar(index, 30 + index * 2, 20 + index, 42 + index * 3));
        var delivery = ChartSeries.CreateErrorBar(new ChartSeriesId("delivery-time"), "Delivery time", measurements);
        return Chart.Create().WithXLabels("Standard", "Express", "Premium", "Bulk", "Return").AddSeries(delivery)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}
