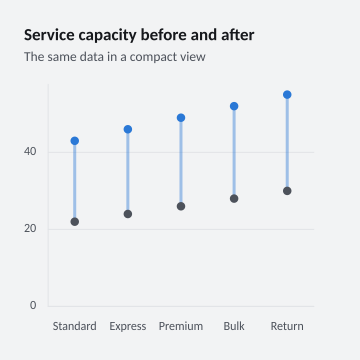

Service capacity before and after

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = DumbbellRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Service capacity before and after", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds a before-and-after comparison of service capacity.</summary>
public static class DumbbellRecipe {
    /// <summary>Creates the selected dumbbell example from typed endpoint pairs.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var count = variant == "sparse" ? 2 : 5;
        var changes = Enumerable.Range(1, count).Select(index => new ChartDumbbell(index, 20 + index * 2, 40 + index * 3));
        var change = ChartSeries.CreateDumbbell(new ChartSeriesId("change"), "Change", changes);
        return Chart.Create().WithXLabels("Standard", "Express", "Premium", "Bulk", "Return").AddSeries(change)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

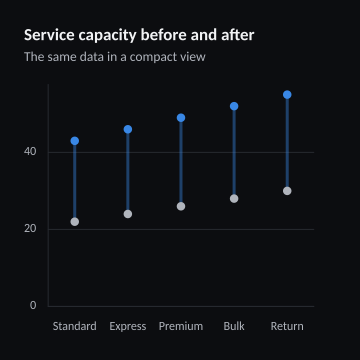

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = DumbbellRecipe.Create("compact", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Service capacity before and after", "The same data in a compact view", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds a before-and-after comparison of service capacity.</summary>
public static class DumbbellRecipe {
    /// <summary>Creates the selected dumbbell example from typed endpoint pairs.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var count = variant == "sparse" ? 2 : 5;
        var changes = Enumerable.Range(1, count).Select(index => new ChartDumbbell(index, 20 + index * 2, 40 + index * 3));
        var change = ChartSeries.CreateDumbbell(new ChartSeriesId("change"), "Change", changes);
        return Chart.Create().WithXLabels("Standard", "Express", "Premium", "Bulk", "Return").AddSeries(change)
            .WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}
