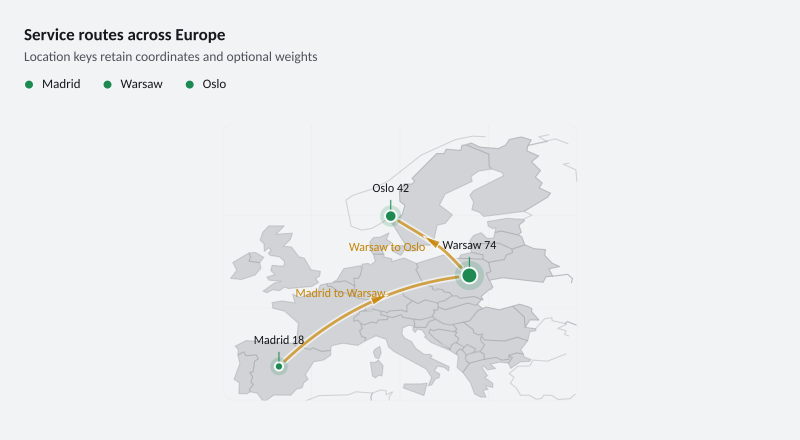

Service routes across Europe

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = DottedMapRecipe.Create("options", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Service routes across Europe", "Location keys retain coordinates and optional weights", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Creates a dotted map with service locations and routes across Europe.</summary>
public static class DottedMapRecipe {
    /// <summary>Creates the source model for a gallery variant without choosing an export backend.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));

        var chart = Chart.Create().WithDataLabels().WithMapViewport(ChartMapViewport.Europe())
            .AddDottedMap("Locations", new[] {
                new ChartMapPoint("Madrid", -3.7, 40.4, 18),
                new ChartMapPoint("Warsaw", 21, 52.2, 74),
                new ChartMapPoint("Oslo", 10.8, 59.9, 42)
            })
            .AddMapRouteBetweenPoints("Madrid to Warsaw", "Madrid", "Warsaw")
            .AddMapRoute("Warsaw to Oslo", new[] {
                new ChartMapPoint("Warsaw", 21, 52.2),
                new ChartMapPoint("Baltic", 17, 56),
                new ChartMapPoint("Oslo", 10.8, 59.9)
            })
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
        if (variant is "options" or "compact-options") chart.WithPointLegend();
        return chart;
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

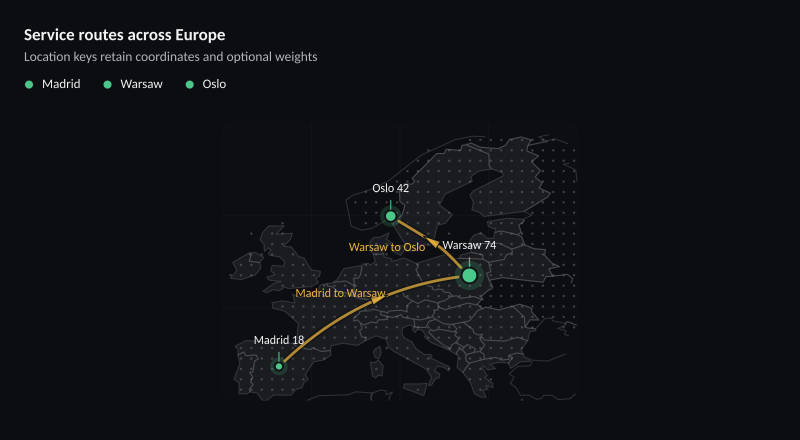

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = DottedMapRecipe.Create("options", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Service routes across Europe", "Location keys retain coordinates and optional weights", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Creates a dotted map with service locations and routes across Europe.</summary>
public static class DottedMapRecipe {
    /// <summary>Creates the source model for a gallery variant without choosing an export backend.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));

        var chart = Chart.Create().WithDataLabels().WithMapViewport(ChartMapViewport.Europe())
            .AddDottedMap("Locations", new[] {
                new ChartMapPoint("Madrid", -3.7, 40.4, 18),
                new ChartMapPoint("Warsaw", 21, 52.2, 74),
                new ChartMapPoint("Oslo", 10.8, 59.9, 42)
            })
            .AddMapRouteBetweenPoints("Madrid to Warsaw", "Madrid", "Warsaw")
            .AddMapRoute("Warsaw to Oslo", new[] {
                new ChartMapPoint("Warsaw", 21, 52.2),
                new ChartMapPoint("Baltic", 17, 56),
                new ChartMapPoint("Oslo", 10.8, 59.9)
            })
            .WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
        if (variant is "options" or "compact-options") chart.WithPointLegend();
        return chart;
    }
}
