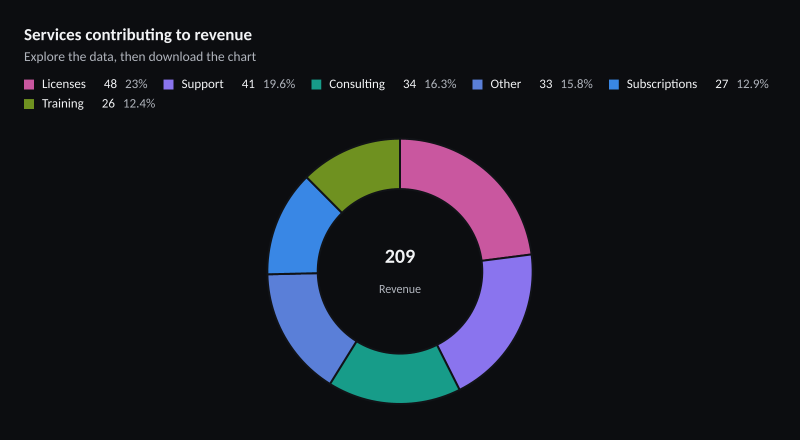

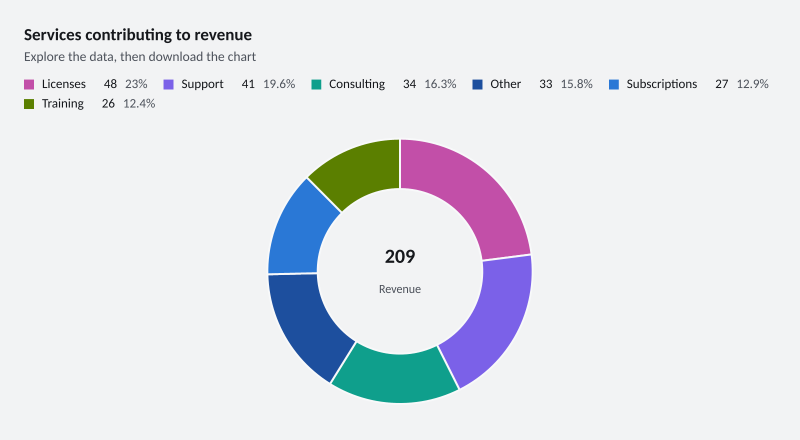

Services contributing to revenue

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = DonutRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Services contributing to revenue", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Service revenue with optional slice labels and a two-line center caption.</summary>
public static class DonutRecipe {
    /// <summary>Creates service revenue; the options variant adds labels, slice treatments and center text.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var revenue = new ChartSeries(new ChartSeriesId("revenue"), "Revenue", ChartSeriesKind.Donut, Observations(variant));
        var chart = Chart.Create().WithXLabels("Subscriptions", "Consulting", "Support", "Licenses", "Training", "Other")
            .AddSeries(revenue).WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
        if (variant == "options") {
            chart.WithDataLabels().WithPieSliceLabelContent(ChartPieSliceLabelContent.Label).WithDonutCenterText("184", "Reviewed");
            revenue.WithPointSliceOffset(0, .12).WithPointFillPattern(1, ChartFillPattern.Crosshatch);
        }
        return chart;
    }

    private static ChartPoint[] Observations(string variant) => (variant == "sparse" ? new[] { 1, 3, 6 } : Enumerable.Range(1, 6))
        .Select(index => new ChartPoint(index, 20 + index * 7 % 29)).ToArray();
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = DonutRecipe.Create("wide", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Services contributing to revenue", "Explore the data, then download the chart", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Service revenue with optional slice labels and a two-line center caption.</summary>
public static class DonutRecipe {
    /// <summary>Creates service revenue; the options variant adds labels, slice treatments and center text.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var revenue = new ChartSeries(new ChartSeriesId("revenue"), "Revenue", ChartSeriesKind.Donut, Observations(variant));
        var chart = Chart.Create().WithXLabels("Subscriptions", "Consulting", "Support", "Licenses", "Training", "Other")
            .AddSeries(revenue).WithValueFormat(ChartValueFormat.Number("0.##", System.Globalization.CultureInfo.InvariantCulture));
        if (variant == "options") {
            chart.WithDataLabels().WithPieSliceLabelContent(ChartPieSliceLabelContent.Label).WithDonutCenterText("184", "Reviewed");
            revenue.WithPointSliceOffset(0, .12).WithPointFillPattern(1, ChartFillPattern.Crosshatch);
        }
        return chart;
    }

    private static ChartPoint[] Observations(string variant) => (variant == "sparse" ? new[] { 1, 3, 6 } : Enumerable.Range(1, 6))
        .Select(index => new ChartPoint(index, 20 + index * 7 % 29)).ToArray();
}
