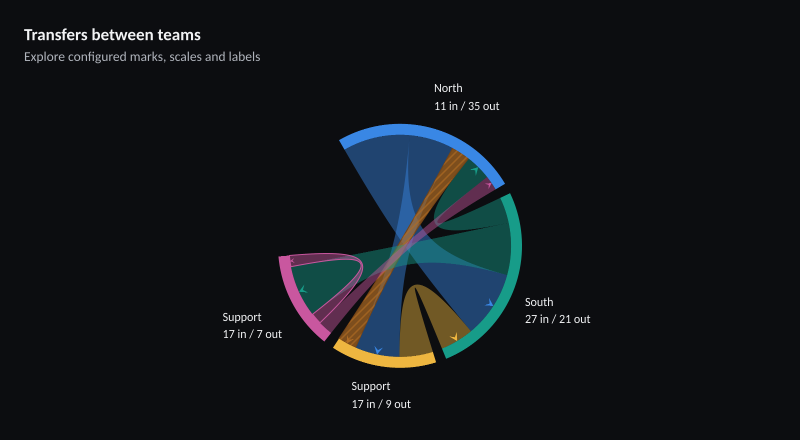

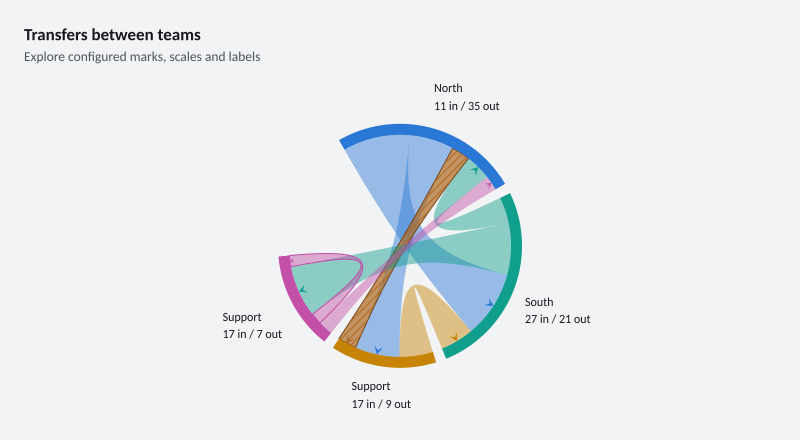

Transfers between teams

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = ChordRecipe.Create("options", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
    new VisualFrame("Transfers between teams", "Explore configured marks, scales and labels", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Directed team transfers retain parallel, reciprocal, self and zero-valued flow identities.</summary>
public static class ChordRecipe {
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        var configured = variant == "options";
        var transfers = ChartSeries.CreateChord(new ChartSeriesId("transfer-source"), "Transfers", new[] {
            new ChartNode("north", "North"), new ChartNode("south", "South"),
            new ChartNode("north-support", configured ? "Support" : "Services"), new ChartNode("south-support", "Support")
        }, new[] {
            new ChartFlowLink("north-south", "north", "south", 18), new ChartFlowLink("south-north", "south", "north", 7),
            new ChartFlowLink("north-standard", "north", "north-support", 12), new ChartFlowLink("north-priority", "north", "north-support", 5),
            new ChartFlowLink("support-south", "north-support", "south", 9), new ChartFlowLink("south-support", "south", "south-support", 14),
            new ChartFlowLink("support-return", "south-support", "north", 4), new ChartFlowLink("support-internal", "south-support", "south-support", 3),
            new ChartFlowLink("zero-transfer", "north-support", "south-support", 0)
        });
        var chart = Chart.Create().AddSeries(transfers).WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
        if (configured) {
            chart.ConfigureChord(options => {
                options.StartAngleDegrees = -120; options.SweepAngleDegrees = 300;
                options.NodeGapDegrees = 5; options.NodeThicknessRatio = .09; options.RibbonOpacity = .45;
                options.LabelContent = ChartChordLabelContent.LabelAndTotals;
            });
            transfers.WithNodeState("north-support", ChartSeriesState.Warning)
                .WithFlowStyle("north-priority", new ChartFlowStyle(fill: ChartColor.FromHex("#AF6B24"), fillOpacity: .7,
                    fillPattern: ChartFillPattern.DiagonalForward, stroke: ChartColor.FromHex("#764415"), strokeWidth: 1))
                .WithFlowState("north-priority", ChartSeriesState.Warning).WithFlowStyle("support-internal", new ChartFlowStyle(strokeWidth: 1));
        }
        return chart;
    }
}
