Daily opening and closing prices

Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.

For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

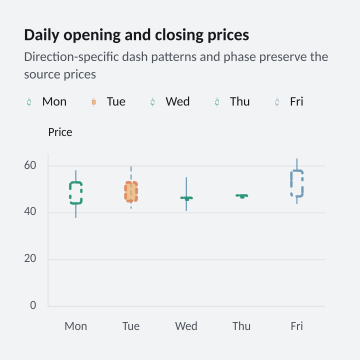

var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = CandlestickRecipe.Create("compact-dashed", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Daily opening and closing prices", "Direction-specific dash patterns and phase preserve the source prices", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds daily opening, closing, high and low prices as candlesticks.</summary>
public static class CandlestickRecipe {
    /// <summary>Creates the selected candlestick example with optional authored body and wick styling.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options" or "dashed" or "compact-dashed"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var chart = Chart.Create();
        if (variant is "options" or "compact-options" or "dashed" or "compact-dashed") {
            var prices = ChartSeries.CreateCandlestick(new ChartSeriesId("daily-prices"), "Daily prices", new[] {
                new ChartCandlestick(1, 44, 58, 38, 53), new ChartCandlestick(2, 53, 60, 42, 45),
                new ChartCandlestick(3, 46, 55, 41, 46), new ChartCandlestick(4, 47, 47, 47, 47),
                new ChartCandlestick(5, 47, 63, 44, 58)
            });
            prices.ConfigureFinancial(financial => {
                financial.Rising.Stroke = ChartColor.FromHex("#2A967B");
                financial.Rising.StrokeWidth = 2.4;
                financial.Falling.Stroke = ChartColor.FromHex("#DB825B");
                financial.Falling.StrokeWidth = 2.8;
                financial.Falling.StrokeOpacity = .85;
                financial.Rising.FillOpacity = 0;
                financial.Rising.Wick.Stroke = ChartColor.FromHex("#729BB7");
                financial.Rising.Wick.StrokeWidth = 1.2;
                financial.Falling.Fill = ChartColor.FromHex("#EBA85B");
                financial.Falling.FillOpacity = .65;
                financial.Falling.Wick.Stroke = ChartColor.FromHex("#729BB7");
                financial.Falling.Wick.StrokeWidth = 1.4;
            }).WithPointColor(4, "#729BB7");
            if (variant is "dashed" or "compact-dashed") prices.ConfigureFinancial(financial => {
                financial.Rising.DashPattern = new[] { 7d, 5d, 2d };
                financial.Rising.DashOffset = -3;
                financial.Falling.DashPattern = new[] { 4d, 4d };
                financial.Falling.DashOffset = 2;
                financial.Rising.Wick.DashPattern = Array.Empty<double>();
                financial.Falling.Wick.DashOffset = -1;
            });
            chart.WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri").WithYAxis("Price")
                .WithPointLegend().WithDataLabels(false).AddSeries(prices);
        }
        else {
            var count = variant == "sparse" ? 2 : 5;
            var values = Enumerable.Range(1, count).Select(index => new ChartCandlestick(index, 30 + index * 3,
                44 + index * 3, 20 + index * 3, index % 2 == 0 ? 26 + index * 3 : 38 + index * 3));
            var prices = ChartSeries.CreateCandlestick(new ChartSeriesId("market-price"), "Market price", values);
            chart.WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri", "Sat").AddSeries(prices);
        }
        return chart.WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}

using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

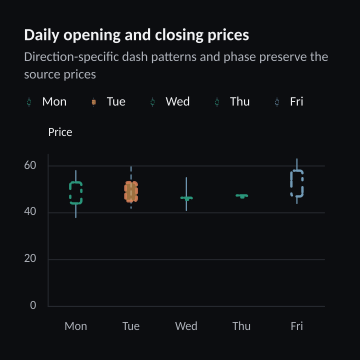

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = CandlestickRecipe.Create("compact-dashed", mode);
var context = new VisualRenderContext(
    new VisualLayoutOptions(new VisualSize(360, 360)), theme, mode,
    new VisualFrame("Daily opening and closing prices", "Direction-specific dash patterns and phase preserve the source prices", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());

/// <summary>Builds daily opening, closing, high and low prices as candlesticks.</summary>
public static class CandlestickRecipe {
    /// <summary>Creates the selected candlestick example with optional authored body and wick styling.</summary>
    public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
        if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options" or "dashed" or "compact-dashed"))
            throw new ArgumentOutOfRangeException(nameof(variant));
        var chart = Chart.Create();
        if (variant is "options" or "compact-options" or "dashed" or "compact-dashed") {
            var prices = ChartSeries.CreateCandlestick(new ChartSeriesId("daily-prices"), "Daily prices", new[] {
                new ChartCandlestick(1, 44, 58, 38, 53), new ChartCandlestick(2, 53, 60, 42, 45),
                new ChartCandlestick(3, 46, 55, 41, 46), new ChartCandlestick(4, 47, 47, 47, 47),
                new ChartCandlestick(5, 47, 63, 44, 58)
            });
            prices.ConfigureFinancial(financial => {
                financial.Rising.Stroke = ChartColor.FromHex("#2A967B");
                financial.Rising.StrokeWidth = 2.4;
                financial.Falling.Stroke = ChartColor.FromHex("#DB825B");
                financial.Falling.StrokeWidth = 2.8;
                financial.Falling.StrokeOpacity = .85;
                financial.Rising.FillOpacity = 0;
                financial.Rising.Wick.Stroke = ChartColor.FromHex("#729BB7");
                financial.Rising.Wick.StrokeWidth = 1.2;
                financial.Falling.Fill = ChartColor.FromHex("#EBA85B");
                financial.Falling.FillOpacity = .65;
                financial.Falling.Wick.Stroke = ChartColor.FromHex("#729BB7");
                financial.Falling.Wick.StrokeWidth = 1.4;
            }).WithPointColor(4, "#729BB7");
            if (variant is "dashed" or "compact-dashed") prices.ConfigureFinancial(financial => {
                financial.Rising.DashPattern = new[] { 7d, 5d, 2d };
                financial.Rising.DashOffset = -3;
                financial.Falling.DashPattern = new[] { 4d, 4d };
                financial.Falling.DashOffset = 2;
                financial.Rising.Wick.DashPattern = Array.Empty<double>();
                financial.Falling.Wick.DashOffset = -1;
            });
            chart.WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri").WithYAxis("Price")
                .WithPointLegend().WithDataLabels(false).AddSeries(prices);
        }
        else {
            var count = variant == "sparse" ? 2 : 5;
            var values = Enumerable.Range(1, count).Select(index => new ChartCandlestick(index, 30 + index * 3,
                44 + index * 3, 20 + index * 3, index % 2 == 0 ? 26 + index * 3 : 38 + index * 3));
            var prices = ChartSeries.CreateCandlestick(new ChartSeriesId("market-price"), "Market price", values);
            chart.WithXLabels("Mon", "Tue", "Wed", "Thu", "Fri", "Sat").AddSeries(prices);
        }
        return chart.WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
    }
}
