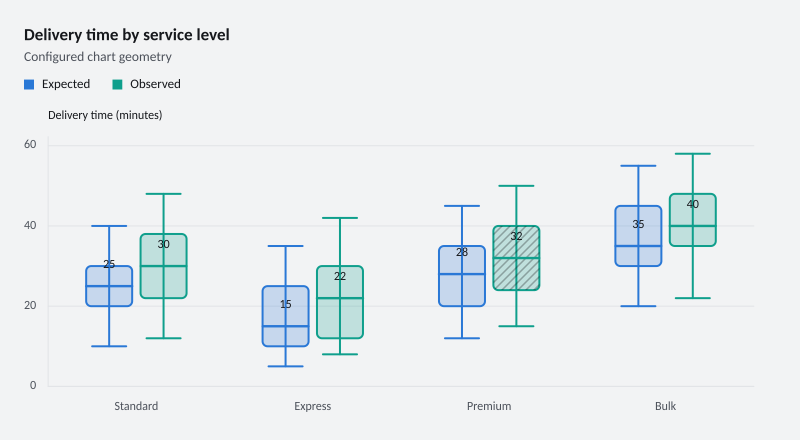

Preview
800 × 440 pixels
Create this example
Create a console project, add the ChartForgeX package, and replace Program.cs with this source. Run it to write SVG, PNG and HTML with the default system fonts.
For the same typography as the gallery, download the gallery-font recipe and copy the gallery’s fonts directory beside your program.
using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;
var mode = VisualThemeMode.Light;
var theme = VisualTheme.Graphite();
var model = BoxPlotRecipe.Create("options", mode);
var context = new VisualRenderContext(
new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
new VisualFrame("Delivery time by service level", "Configured chart geometry", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());
/// <summary>Builds delivery-time distributions from typed five-number summaries.</summary>
public static class BoxPlotRecipe {
/// <summary>Creates the selected box-plot example and its orientation.</summary>
public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options" or "horizontal" or "compact-horizontal"))
throw new ArgumentOutOfRangeException(nameof(variant));
var chart = Chart.Create();
if (variant is "options" or "compact-options" or "horizontal" or "compact-horizontal") {
var horizontal = variant is "horizontal" or "compact-horizontal";
var expected = ChartSeries.CreateBoxPlot(new ChartSeriesId("expected"), "Expected", new[] {
new ChartBoxPlot(1, 10, 20, 25, 30, 40), new ChartBoxPlot(2, 5, 10, 15, 25, 35),
new ChartBoxPlot(3, 12, 20, 28, 35, 45), new ChartBoxPlot(4, 20, 30, 35, 45, 55)
});
var observed = ChartSeries.CreateBoxPlot(new ChartSeriesId("observed"), "Observed", new[] {
new ChartBoxPlot(1, 12, 22, 30, 38, 48), new ChartBoxPlot(2, 8, 12, 22, 30, 42),
new ChartBoxPlot(3, 15, 24, 32, 40, 50), new ChartBoxPlot(4, 22, 35, 40, 48, 58)
}).WithPointFillPattern(2, ChartFillPattern.DiagonalForward);
chart.WithXLabels("Standard", "Express", "Premium", "Bulk").AddSeries(expected).AddSeries(observed)
.ConfigureBoxPlot(options => options.Orientation = horizontal ? ChartOrientation.Horizontal : ChartOrientation.Vertical)
.WithDataLabels();
if (horizontal) chart.WithXAxis("Delivery time (minutes)").WithYAxis("Service");
else chart.WithYAxis("Delivery time (minutes)");
}
else {
var count = variant == "sparse" ? 2 : 5;
var distributions = Enumerable.Range(1, count)
.Select(index => new ChartBoxPlot(index, 10 + index, 20 + index, 30 + index, 38 + index, 50 + index));
var delivery = ChartSeries.CreateBoxPlot(new ChartSeriesId("delivery-time"), "Delivery time", distributions);
chart.WithXLabels("Standard", "Express", "Premium", "Bulk", "Return").AddSeries(delivery);
}
return chart.WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
}
}
using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using ChartForgeX.Core;
using ChartForgeX.Primitives;
using ChartForgeX.Rendering;
using ChartForgeX.Themes;
using ChartForgeX.Topology;
using ChartForgeX.Typography;
using ChartForgeX.VisualArtifacts;
using ChartForgeX.VisualBlocks;

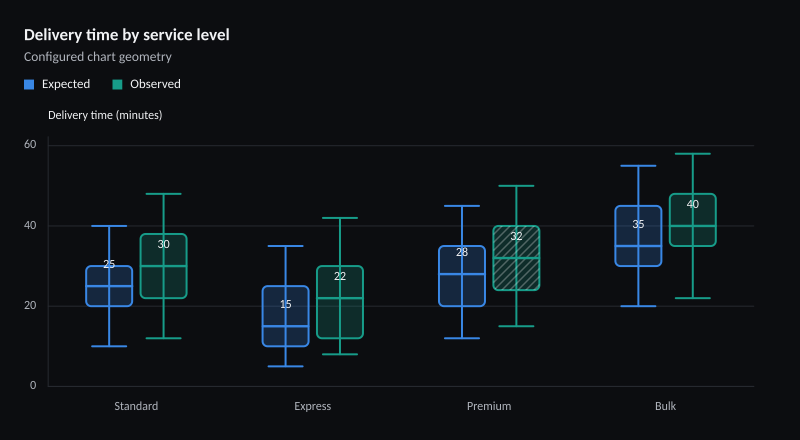

var mode = VisualThemeMode.Dark;
var theme = VisualTheme.Graphite();
var model = BoxPlotRecipe.Create("options", mode);
var context = new VisualRenderContext(
new VisualLayoutOptions(new VisualSize(800, 440)), theme, mode,
new VisualFrame("Delivery time by service level", "Configured chart geometry", showLegend: null, showSurface: false));
var prepared = model.Prepare(context);
File.WriteAllText("visual.svg", prepared.ToSvg());
File.WriteAllBytes("visual.png", prepared.ToPng());
File.WriteAllText("visual.html", prepared.ToArtifact("example", VisualArtifactKind.Chart).ToHtmlPage());
/// <summary>Builds delivery-time distributions from typed five-number summaries.</summary>
public static class BoxPlotRecipe {
/// <summary>Creates the selected box-plot example and its orientation.</summary>
public static Chart Create(string variant = "wide", VisualThemeMode mode = VisualThemeMode.Light) {
if (variant is not ("wide" or "compact" or "sparse" or "options" or "compact-options" or "horizontal" or "compact-horizontal"))
throw new ArgumentOutOfRangeException(nameof(variant));
var chart = Chart.Create();
if (variant is "options" or "compact-options" or "horizontal" or "compact-horizontal") {
var horizontal = variant is "horizontal" or "compact-horizontal";
var expected = ChartSeries.CreateBoxPlot(new ChartSeriesId("expected"), "Expected", new[] {
new ChartBoxPlot(1, 10, 20, 25, 30, 40), new ChartBoxPlot(2, 5, 10, 15, 25, 35),
new ChartBoxPlot(3, 12, 20, 28, 35, 45), new ChartBoxPlot(4, 20, 30, 35, 45, 55)
});
var observed = ChartSeries.CreateBoxPlot(new ChartSeriesId("observed"), "Observed", new[] {
new ChartBoxPlot(1, 12, 22, 30, 38, 48), new ChartBoxPlot(2, 8, 12, 22, 30, 42),
new ChartBoxPlot(3, 15, 24, 32, 40, 50), new ChartBoxPlot(4, 22, 35, 40, 48, 58)
}).WithPointFillPattern(2, ChartFillPattern.DiagonalForward);
chart.WithXLabels("Standard", "Express", "Premium", "Bulk").AddSeries(expected).AddSeries(observed)
.ConfigureBoxPlot(options => options.Orientation = horizontal ? ChartOrientation.Horizontal : ChartOrientation.Vertical)
.WithDataLabels();
if (horizontal) chart.WithXAxis("Delivery time (minutes)").WithYAxis("Service");
else chart.WithYAxis("Delivery time (minutes)");
}
else {
var count = variant == "sparse" ? 2 : 5;
var distributions = Enumerable.Range(1, count)
.Select(index => new ChartBoxPlot(index, 10 + index, 20 + index, 30 + index, 38 + index, 50 + index));
var delivery = ChartSeries.CreateBoxPlot(new ChartSeriesId("delivery-time"), "Delivery time", distributions);
chart.WithXLabels("Standard", "Express", "Premium", "Bulk", "Return").AddSeries(delivery);
}
return chart.WithValueFormat(ChartValueFormat.Number("0.##", CultureInfo.InvariantCulture));
}
}
